Getting Started

Run in Postman™

Below is a collection with all examples from this API release. You can use this collection locally in the Postman™ application or in a Postman™ for Web workspace.

For local Postman, use the Get App link in the collection import dialog, or visit the Postman™ website Once you click the Run in Postman button to download the collection, you can choose which workspace to import it into.

If successfully imported, the collection displays (example below) with folders, each containing example API. The folders follow the naming / navigation of this reference page.

To use this collection effectively, use environments to setup a series of variables. The following environment variables are embedded in the collection endpoints:

The screenshot below shows environment variables for the following Vault setup:

CDMS Overview

Data Organization

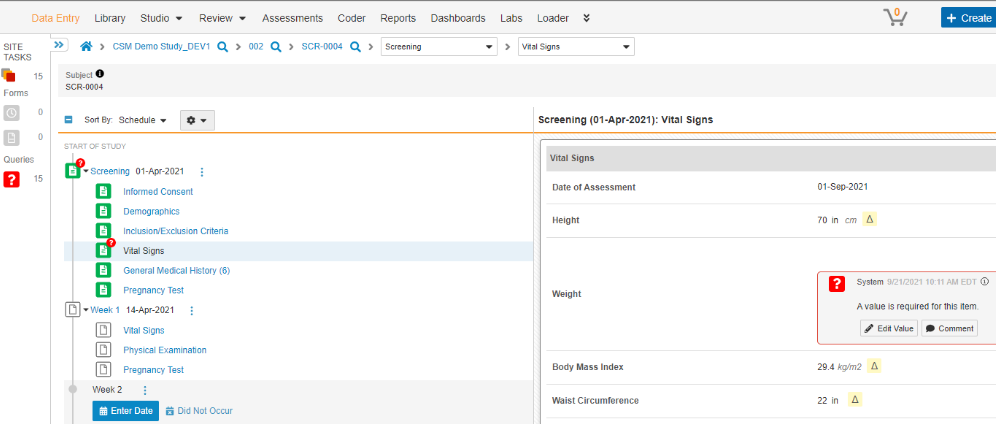

Data for a CDMS Study follows a model similar to CDISC ODM, e.g. Visits / Forms / Item Groups / Items. CDMS, however, terms a Visit instead an Event, and Event Groups can group a series of Events.

Data Level Notes
Study Main component of CDMS. A single Vault typically contains many Studies
Study Country Collection of Sites in the Study
Site Collection of Subjects in the Study at that location
Subject A patient in the Study, their data collected across all visits in the Study
Event Group Collection of Events, possibly repeating. Examples Screening Period, Treatment Cycle, Unscheduled Visit
Event One to one with a visit for a Subject, the data collected at that visit. Examples - Screening, Visit 1, Visit 2
Form Organized data for the Subject at an Event, possibly repeating. Examples - Vitals, Demography, PK, etc.
Item Group Organized set of Items on a Form, possibly repeating.
Item A single data point for the Subject. Examples - Date of Birth, Weight, Adverse Event Description

Study Design and Operations

CDMS API Overview

Structuring the Endpoint

The following variable notation is used in the endpoint examples throughout this page:

API Access

To make API calls against Vault, you first need a Vault user account. That account must be assigned a Study Role that grants the API Access permission. Then, you must have the appropriate permissions for the actions you want to perform via the API. These permissions typically match those required to perform the same action in the CDMS UI. For example, to use the Combination Update Form Data endpoint, you must have the View Casebook (view Subject) and Data Entry permissions, in addition to API Access. In this reference, each endpoint lists which permissions are required.

To simplify the granular nature of the permissions required for specific actions, CDMS contains two standard (template) roles for API users: CDMS API Read Write and CDMS API Read Only. Your organization may have configured your Vault with custom roles, based on the standard ones, so discuss with your organization's user administrator what permissions your API-level accounts require.

The CDMS API Read Write role must have All Sites access in your Study.

To be able to use all CDMS APIs, you must have the following permissions:

Permission Controls
API Access Ability to access and use the Vault CDMS API
View Casebook Ability to view information about Subjects (their Casebooks)
Add Casebook Ability to create new Subjects / Casebooks
Data Entry Ability to enter study data into Casebooks, including entering Event Dates, setting Item values, and submitting Forms
View Code Ability to view progress on Medical Coding Requests and related records
Open Query Ability to open (create new) queries or reopen a closed Query
Answer Query Ability to answer (comment on or respond to) queries
Close Query Ability to close queries
Manage Users Ability to create and edit user accounts and assign users their Study Roles

See Managing User Access in Vault CDMS Help for detailed instructions on account creation and role assignment.

Read vs. Write Access

For read-only access to the CDMS API, we recommend the standard CDMS API Read Only study role, which contains all necessary permissions. This role allows the user access to all GET APIs to retrieve and view information from CDMS.

For read and write access, we recommend the standard CDMS API Read Write study role, which grants all necessary permissions. This includes all permissions from the CDMS API Read Only role, as well as the ability to add or update various study data.

If your organization uses custom Study Roles, your user administrator should model those roles after these two standard API roles.

Insufficient Access

If you don't have API access, your authentication request might succeed, but any other API calls you make will return the following error (one example):

INSUFFICIENT_ACCESS: User [ID] not licensed for permission [VaultActions_API_Access].

If you do not have API access, contact your Vault administrator to adjust your study account(s) / role(s).

Login / Sessions

Request

curl -X POST -H "Content-Type: application/x-www-form-urlencoded" \
-d "username={username}&password={password}" \
"https://my-vault.veevavault.com/api/v24.2/auth"

Response

{
    "responseStatus": "SUCCESS",
    "sessionId": "802E62F765575BEB70642BE7A822A419F48B41312ECCAF4767D8DD956873DEE90D677F053A5DAB00B37E2C6B42FA6B15FCE6147C6120F56A638D911EBDFA007B",
    "userId": 92677,
    "vaultIds": [
        {
            "id": 1004329,
            "name": "My Vault",
            "url": "https://my-vault.veevavault.com/api"
        },
        {
            "id": 1004330,
            "name": "My Vault 2",
            "url": "https://my-vault2.veevavault.com/api"
        }
    ],
    "vaultId": 1004329
}

Your first API call will be an authentication request, which is the same endpoint for the access of any Vault. Successful login provides back a session ID for other API calls to include. In the response example to the right, this is the value 802E62F76557....BDFA007B.

Session Duration

A session is considered "active" as long as some activity (either through the UI or API) happens within the maximum inactive session duration. This maximum inactive session duration varies by Vault, and is configured by your Vault Admin. For example, a Vault configured with a session duration of 10 minutes means a session will expire 10 minutes after the last API request finishes executing. As long as an API request is active, the session that made that API call will continue to be valid until the request finishes executing. If you are a Vault Admin, learn more about configuring Session Duration in Vault Help.

The default session length is 20 minutes. The maximum session duration is 48 hours, which is not configurable. This means that even if you keep your session active through activity, it cannot remain active for longer than 48 hours. To keep sessions valid in a long-running integration, see our best practices.

In addition, a session could be invalidated based on major security changes. For example, a password change or account deactivation.

Best Practices

We recommend reusing the sessionId obtained after login to execute as many API requests as possible. To keep your session active, use the Session Keep Alive endpoint. This avoids unnecessary auth calls, which helps your integration stay within the API rate limits.

Make sure your integration catches invalid session exceptions and obtains a new session as needed. Your integration should also include a hard expiration at 48 hours, which is the maximum session duration.

Pagination

Request - Retrieve Queries (1750 in the study) with default page size of 1000

$ curl -X GET -H "Authorization: {SESSION_ID} \
https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/?study_name=ABCP-2022-01_DEV1

Response - 1st Page (Results 0-999)

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 1000,
        "total": 1750,
        "next_page": "/api/{version}/app/cdm/queries?resource_locator=4db7ac7f-aa08-486a-99e1-9acb5cdda80e&limit=1000&offset=1000",
        "resource_locator": "4db7ac7f-aa08-486a-99e1-9acb5cdda80e"
    },
    "queries": [
        :
        :
        (1000 entries are here, one per query)
        :
        :
    ]
}

Request - Retrieve Queries, 2nd Page

$ curl -X GET -H "Authorization: {SESSION_ID}" \
https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/resource_locator=4db7ac7f-aa08-486a-99e1-9acb5cdda80e&limit=1000&offset=1000"

Response: 2nd Page (Results 1000 - 1749)

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 1000,
        "size": 750,
        "total": 1750,
        "previous_page": "/api/{version}/app/cdm/queries?resource_locator=4db7ac7f-aa08-486a-99e1-9acb5cdda80e&limit=0&offset=0",
        "resource_locator": "4db7ac7f-aa08-486a-99e1-9acb5cdda80e"
    },
    "queries": [
        :
        :
    ]
}

By default, Vault returns a maximum of 1000 results per page. This means that for a paginating API, if there are more than 1000 results to be retrieved, you must send multiple API requests to retrieve all data.

Paginating APIs return a json node called responseDetails, which contains the current limit, offset, size, and total.

If additional pages are available, the responseDetails node includes a next_page and resource_locator (an identifier of the overall query) fields. Whenever the next_page field is present in the API response, this indicates that additional page(s) are still available and must be separately retrieved. When fetching a next_page, there is no need to provide any of the original API parameters (like study_name, study_country, etc.). The only required parameters when using next_page are the limit, offset, and resource_locator, which are automatically included in the next_page value.

To recap, next_page requests must contain an offset (positive integer or zero), a limit (positive integer less than 1000), and a resource_locator, all of which are included in the next_page URL returned by a paginating API.

For the example on the right (a call to the retrieve queries endpoint, for all queries in the study, 1750 in total):

Users can also set their own limit and offset by providing limit and offset parameters along with the initial API request. In this case, the next_page and previous_page fields returned will reflect the user desired values

Rate Limits

API rate limits are a common way to guarantee a high-quality service by preventing servers from becoming overloaded and the web service itself from becoming unusable. Web services are a fundamental resource to any application or integration. Vault enforces rate limits to ensure that each application or integration gets its fair share of this resource. Learn more about API rate limits in Vault Help.

How Does Vault Calculate Limits?

Vault enforces multiple types of rate limits:

For example, a Vault might allow 2,000 API requests within a 5-minute window. Between 4:00 and 4:03, your Vault has received 2,000 requests. On request 2,001 at 4:04, the server slows down all requests until the next window begins at 4:05.

As of v21.1, Vault no longer enforces daily API limits, including the daily_limit_remaining in API usage logs, or sends notifications to users when API transaction limits are partially reached or exceeded.

APU Rate Limit Headers

Vault APIs return rate limiting headers to help you monitor how many API calls you have remaining as well as possible response throttling.

As of v21.1, Vault APIs no longer returns the X-VaultAPI-DailyLimit or X-VaultAPI-DailyLimitRemaining headers. To ensure backwards compatibility, Vault APIs v20.3 and below still return the headers with a value of 999,999. Vault does not deduct from this value with each request.

Authentication Rate Limit Headers

As of v20.1, calls to /api/{version}/auth return two rate limit headers in every response showing you the total limits allowed for your Vault and how many /api/{version}/auth calls you have remaining. These calls also count towards your burst and daily limits.

Developing with Rate Limits:

Here are some best practices for reducing the number of API requests:

  1. Avoid unnecessary auth calls. A session ID with a timeout of 20 minutes only expires if it is not used within 20 minutes after the last request finishes executing.

  2. Cache configuration data. Configuration data does not change often. Retrieve it once and store it locally in a database like SQLite or serialized in a file.

  3. Optimize your code to eliminate unnecessary API requests. Are you retrieving data that isn’t being used in your application? Are you updating data that hasn’t changed? Eliminate these calls.

  4. Regulate the API request rate. If you are frequently approaching or reaching the API rate limit, consider implementing a throttling process in your application to distribute your requests more uniformly over time. For example, observe the above-mentioned response headers and monitor your request rate. Throttle requests when your rate reaches a certain threshold.

Client ID

Recommended Client ID Format

{company}-{organization}-{component/team}-{server | client}-{program}

For additional tracking purposes, every Vault REST API call will accept an optional client ID to represent an external integration client. You can provide this data via a query parameter called client_id or HTTP Header calledX-VaultAPI-ClientID. If client ID is included as both a HTTP Header and query parameter, the query parameter is ignored.

The Vault API will record the client ID value for each API call. This ID appears in the API Usage Logs, which is downloadable through the UI and API. If an API request does not include a client ID, the value will appear as unknown in the API Usage Log. The API Usage Log is only available in v18.1+, but client ID can be included in requests for all versions of the API.

Example: Vault Loader Team Client ID

veeva-vault-tools-server-loader

A valid client ID must be an alphanumeric string with a maximum of 100 characters. A client ID can be mixed-case and the only special characters allowed are underscores _ and hyphens -. If an API request includes an invalid client ID, the value will appear as invalid_client_id in the API Usage Log.

To avoid clashing with other integrations or client applications running on Vault, we recommend that you format you use our recommended Client ID format.

Errors - General

Example: Failed Authentication

{
    "responseStatus" : "FAILURE",
    "errors" : [
        {
            "type" : "NO_PASSWORD_PROVIDED",
            "message" : "No password was provided for the login call."
        }
    ],
    "errorType" : "AUTHENTICATION_FAILED"
}

Example: Down for Maintenance

{
    "responseStatus": "FAILURE",
    "responseMessage": "Authentication failed for user [chunter@abcpharma.com]",
    "errors": [
        {
            "type": "DOWN_FOR_MAINTENANCE",
            "message": "Vault is currently down for maintenance"
        }
    ],
    "errorType": "AUTHENTICATION_FAILED"
}

The response of every API call includes a field called responseStatus. Possible values are:

For a responseStatus other than SUCCESS, users can inspect the errors field in the response. If the errors are returned in an errors JSON array (depends on the level of fail, CDMS or Vault), each includes the following fields:

Type Description
UNEXPECTED_ERROR General error catch-all when there is no specific error, or an unidentified error.
MALFORMED_URL The specified resource cannot be found.
METHOD_NOT_SUPPORTED The specified resource does not support the (POST, PUT, GET, DELETE) method. Or, the API request is not supported by this version of API.
INACTIVE_USER User is found, but not active.
NO_PASSWORD_PROVIDED No password was provided for the login call.
USERNAME_OR_PASSWORD_INCORRECT Authentication failed because an invalid username or password was provided.
USER_LOCKED_OUT The user is locked out. The only way to unlock a user account is for another administrator to perform the Reset Password operation on the user.
PASSWORD_CHANGE_REQUIRED Password change required.
INVALID_SESSION_ID Invalid session ID provided.
DOWN_FOR_MAINTENANCE The Vault is currently down for maintenance.
PARAMETER_REQUIRED Missing required parameters in the API call.
INVALID_DATA Invalid data provided in the API call.
INSUFFICIENT_ACCESS User does not have sufficient privileges to perform the action. Additionally, the ../actions/.. endpoints may return this error in cases where the user attempts to access a resource which does not exist.
OPERATION_NOT_ALLOWED Certain rules that must be met to perform this operation have not been met.
ATTRIBUTE_NOT_SUPPORTED The specified resource does not recognize provided attributes.
INVALID_FILTER Provided a non-existent filter to Retrieve Documents.
INCORRECT_QUERY_SYNTAX_ERROR Query string used with VQL has an incorrect query syntax.
RACE_CONDITION A rare condition where the same record is being simultaneously updated by another API call.
EXCEEDS_FILE_MAX_SIZE The size of uploaded file exceeds the maximum size allowed (4 GB).
API_LIMIT_EXCEEDED Vault limits the number of API calls that can be made every 5-minutes and every 24 hours. Additionally, the Job Status endpoint can only be requested once every 10 seconds. When either of these limits are reached, this error message is returned, and no further calls will be processed until the next 5-minute or 24-hour period begins. Learn more about API Limits.
CONFIGURATION_MODE_ENABLED Non-Admins cannot access a Vault in Configuration Mode. Learn more about Configuration Mode in Vault Help.
SDK_ERROR An error caused by the Vault Java SDK, generally a low-level trigger in the Vault platform. This could be a trigger that is part of the core application or custom trigger in a specific Vault. For more information about this error, check logs at the Admin -> Logs -> Vault Java SDK Logs area.

Errors - CDMS

Example: Outer vs. Inner responseStatus - Single subject add, fails...

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "FAILURE",
            "errorMessage": "[Study Country] with name [Germany] not found"
            "study_country": "Germany",
            "site": "101",
            "subject": "101-021",
        }
    ]
}

Example: Outer vs Inner responseStatus - Add event groups, one succeeds, one fails...

{
    "responseStatus": "SUCCESS",
    "eventgroups": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egIRT_INFO",
            "eventgroup_sequence": 1
        },
        {
            "responseStatus": "FAILURE",
            "errorMessage": "[Subject] with name [101-021] not found"
            "study_country": "United States",
            "site": "101",
            "subject": "101-021",
            "eventgroup_name": "egIRT_INFO"
        }
    ]
}

CDMS API requests for pushing data into the system allow for multiple actions in a single call. As such, a status per entry is provided in the responses. This is true even if the call only performs a single action.

Example: Incorrect study_name for Create Subject / Casebook

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "FAILURE",
            "errorMessage": "[Study] with name [ABCP-2022-01_DEV2] not found",
            "study_country": "United States",
            "site": "101"
        }
    ]
}

Example: Using Set Event Date on a Frozen Subject

{
    "responseStatus": "SUCCESS",
    "events": [
        {
            "responseStatus": "FAILURE",
            "errorMessage": "Subject is frozen",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "enrollment",
            "eventgroup_sequence": 1,
            "event_name": "enrollment_visit",
            "event_sequence": 1
        }
    ]
}

The table below lists common errors for CDMS APIs:

Area Error Description
Study [Study] with name [study_name] not found Vault couldn't find a Study with the Name provided in study_name.
Study [Study Country] with name [study_country] not found Vault couldn't find a Study Country with the Name provided in study_country.
Study Study Country is provided, but Study Name is not To use the study_country parameter, you must provide a value for the study_name parameter.
Study [Study Site] with name [site] not found Vault couldn't find a Site with the Site Number (site__v.name__v) provided in site.
Study Site is provided, but Study Country is not To use the site parameter, you must provide values for the study_name and study_country parameters.
Study [Subject] with name [subject] not found Vault couldn't find a Subject with the Name (Subject ID) provided in subject.
Study [Subject] with name [subject] exists A Subject with the Name (Subject ID) provided in subject already exists.
Study Study is locked The Study is locked, and so this action is not allowed.
Study Site is locked The Site is locked, and so this action is not allowed.
Study Subject is provided, but Site and Study Country are not To use the subject parameter, you must provide values for study_name, study_country, and study_site.
Study Subject is frozen The Subject is frozen, and so the action isn't allowed.
Study Subject is locked The Subject is locked, and so the action isn't allowed.
Study [Event Definition] with [event_name] not found Vault couldn't find an Event Definition with the Name provided in event_name.
Study [Event Group Definition] with [eventgroup_name] not found Vault couldn't find an Event Group Definition with the Name provided in eventgroup_name.
Study [Form Definition] with name [form_name] not found Vault couldn't find a Form Definition with the Name provided in form_name.
Study [Item Group Definition] with name [itemgroup_name] not found Vault couldn't find an Item Group Definition with the Name provided in itemgroup_name.
Study [Item Definition] with name [item_name] not found Vault couldn't find an Item Definition with the Name provided in item_name.
Study Change reason is required You didn't provide a value for change_reason, which is required for this API.
Study Change reason too long The change_reason you provided exceeds the maximum character limit.
Study Country [country] does not exist The country you provided is invalid.
Study Event Date is frozen The Event Date is frozen because either the Subject or Event is frozen, and so this action is not allowed.
Study Event Date is locked The Event Date is locked because either the Subject or Event is locked, and so this action is not allowed.
Study Form is already submitted The Form is already in the Submitted status, and you can't submit a Form that is already submitted, marked as intentionally left blank, or signed.
Study Form is frozen The Form is frozen, and so this action is not allowed.
Study Form is locked The Form is locked, and so this action is not allowed.
Study Form is not submitted The Form is not in the Submitted status, and so you can't use the Reopen Submitted Forms API to move it to the In Progress status.
Study Item is locked The Item is locked, and so this action is not allowed.
Study Item value is not in correct format for setting the item The value you provided isn't in the correct format for the Item.
Study Items on submitted forms cannot be edited The Item is on a Form that is in the Submitted status, and so you can't edit the Item. Use the Reopen Submitted Forms API to return the Form to the In Progress status.
Study Unique event/item cannot be found with the specified keys` Vault couldn't find the Event Date or Item for a repeating Event Group, Form, or Item Group with the matching sequence_number.
Study Unique item cannot be found with the specified keys Vault couldn't find the Form for this Item.
Queries Query ID not found Vault couldn't find a Query with the id provided.
Queries Query is already in the Closed status You can't answer or close a Query that is already in the Closed status.
Queries Query is already in the Reopened status You can't reopen a Query that is already in the Reopened status.
Queries Query not in Closed status You can't reopen a Query that isn't in the Closed status.
Queries Query ID not found Vault couldn't find a Query with the ID you provided in the id parameter. For this error, Vault returns SUCCESS but with an empty query list.
Queries Derived field cannot be set You can't set the value for an Item that is populated by a Set Item Value rule (derived item).
Queries Message is required The message parameter is required for this API.
Queries Message is too long The message provided exceeds the maximum character limit.
Queries Unique query cannot be found with the specified keys The Query is on an Event Date within a repeating Event Group or an Item on a repeating Form or Item Group, and Vault couldn't find the sequence with the matching sequence_number. Otherwise, Vault couldn't find the Query because the provided definitions were incorrect.
Jobs Unsupported value provided for [Job Type] parameter, valid types are [event_progress_listing_v, subject_progress_listingv, form_progress_listingv, data_and_definition_exportv, study_data_extractv, core_listingv, query_detail_listing_v] The value you provided for the job_type parameter was invalid. Valid job types can be found at: Job Summary / Types
Jobs A job of the same type is already running You can only have one in progress Study Data Extract job at any given time. If you receive this error, wait until the current job finishes before starting a new job.
Jobs [Job] with [job_id] not found Vault did not find a job with the provided job_id.
Jobs [Job] with status [status] is not cancellable You can only cancel jobs that are in the In Progress status.
Jobs [Job] with status [status] is not able to return a log file Vault can only return the log file when the job is no longer in the In Progress status.
Jobs [Job] with status [status] is not able to return an export file Job output files aren't available until the job is in the Completed status.
Jobs [File Name] with name [...value...] invalid. File names may only include the characters a-z, A-Z, 0-9, -, _ and no double underscores The file name you provided in file_name contained an invalid character. Provide a new value for file_name that only uses a-z, A-Z, 0-9, dashes (-), and underscores (_), and does not use spaces or double underscores (__).
Jobs [File Name] should be entered without the .zip extension The file name you provided in file_name included the extension (.zip). Remove the extension from file_name.
Jobs [External Connection with name [external_connection] not found Vault could not locate an External Connection with the Name that you provided in the external_connection parameter.
Jobs [Forms] with name [forms] not found Vault could not find a Form Definition with the Name you provided in the forms parameter.
Jobs [forms] is a required parameter The all_forms parameter was set to false, but you didn't include the forms parameter to specify a list of Forms.
Jobs [all_forms] or [forms] are required You must provide the all_forms parameter, and then either set it to true or provide a list of Forms in the forms parameter.
Jobs [Export File Type] with [export_file_type] not found The export_file_type you provided does not match one of the accepted values for the parameter: "CSV" or "SAS with XPT and CSV".
Jobs SDE Version is invalid The version of the Study Data Extract job you requested in the version parameter is invalid or unavailable. The available versions are ... (versions listed)
Medical Coding Coding Request not found The coding_request parameter is invalid or does not match an existing Code Request record.
Medical Coding Coding Request is null The coding_request parameter is required.
Medical Coding Coding Request is blank The coding_request parameter must have a value.
Subject / Casebook Casebook cannot be added. [Study Site] with name [value] does not have an active casebook version. The Site you are attempting to create a Casebook within does not have an Active Casebook Version assigned.
Users Language [language] does not exist The language you provided does not exist in Vault or is otherwise invalid.
Users Last name must be no greater than 100 characters The last_name provided exceeds the maximum character limit of 100 characters.
Users Duplicate A user with this user_name already exists.
Users Locale [locale] does not exist The locale you provided does not exist in Vault or is otherwise invalid.
Users Email needs to be of valid format The email you provided isn't in a valid format.
General Date passed was empty or invalid format. Must use YYY-MM-DD. You passed an invalid parameter for the date, meaning that it was empty, not ISO format, or otherwise invalid.
General Last Modified Date must have the following format: yyyy-MM-dd'T'HH:mm:ss'Z' You must use the yyyy-MM-dd'T'HH:mm:ss'Z' format for the last_modified_date parameter.
General No permission for this action You don't have the permissions required to use this API.
General Error writing to destination directory, please check your FTP connection and directory permissions. Vault encountered an error when attempting to send the output file to the FTP connection specified in the external_connection parameter.
General No restricted data permission You are attempting to request restricted data, but you don't have the Restricted Data Access permission. Update include_restricted_data to false.
General The allowed maximum value for [limit] parameter is: 1000 The maximum allowed value for the limit is 1000. Enter a number lower than 1000.
General Expecting integer value for parameter [limit] but received [1a] The limit operator requires a positive integer.
General Expecting integer value for parameter [offset] but received [1a] The offset operator requires a positive integer.
General No results found using the resource_locator [offset] A different user than the one who made the original request attempted to use the resource_locator (next_page/previous_page URLs) to paginate. The resource_locator request must be made by the same user who made the original request.

Authentication

Authenticate your account using one of the methods outlined below. The response returns a session ID that you then use in subsequent API calls, inside the Authorization HTTP request header. Session IDs time out after a period of inactivity. The period varies by Vault.

User Name & Password

Request

curl -X POST -H "Content-Type: application/x-www-form-urlencoded" \
-d "username={username}&password={password}" \
"https://my-vault.veevavault.com/api/v24.2/auth"

Response

{
    "responseStatus": "SUCCESS",
    "sessionId": "802E62F765575BEB70642BE7A822A419F48B41312ECCAF4767D8DD956873DEE90D677F053A5DAB00B37E2C6B42FA6B15FCE6147C6120F56A638D911EBDFA007B",
    "userId": 92677,
    "vaultIds": [
        {
            "id": 1004329,
            "name": "My Vault",
            "url": "https://my-vault.veevavault.com/api"
        },
        {
            "id": 1004330,
            "name": "My Vault 2",
            "url": "https://my-vault2.veevavault.com/api"
        }
    ],
    "vaultId": 1004329
}

Authenticate your account using your Vault username and password to obtain a Vault Session ID.

Endpoint

POST https://{vault_subdomain}/api/{version}/auth

Headers

Name Description
Content-Type multipart/form-data or application/x-www-form-urlencoded
Accept application/json (default) or application/xml

URI Path Parameters

Name Description
vault_subdomain The DNS of the Vault for which you want to generate a session. If this domain is invalid or inactive, Vault executes logic to authenticate the user to their most relevant available Vault. The term invalid applies to any Vault where the requesting user is unable to authenticate. Learn more about default Vaults.
version The Vault REST API version. Your authentication version does not need to match the version in subsequent calls. For example, you can authenticate with v22.2 and run your integrations with v22.3.

Body Parameters

Name Description
username The username of your Vault account
password The password of your Vault account
vaultDNS Optional The DNS of the Vault for which you want to generate a session. If omitted, generates a session for the user’s default Vault.

Response Details

On SUCCESS, this request returns a valid sessionId for any Vault DNS where the user has access.

The Vault DNS for the returned session is calculated in the following order:

  1. Generates a session for the DNS in the optional vaultDNS body parameter. If this vaultDNS is invalid, generates a session for the user’s most relevant available Vault:

    * Generates a session for the Vault where the user last logged in * If the user has never logged in, or if the last logged-in Vault is inactive, generates a session for the oldest active Vault where that user is a member * If the user is not a member of any active Vaults, the user cannot authenticate, and the API returns FAILURE

  2. If the optional vaultDNS body parameter is omitted, generates a session for the DNS specified in the vaultDNS URI parameter.

  3. If this vaultDNS is invalid, generates a session for the user’s most relevant available Vault:

    * Generates a session for the Vault where the user last logged in * If the user has never logged in, or if the last logged-in Vault is inactive, generates a session for the oldest active Vault where that user is a member * If the user is not a member of any active Vaults, the user cannot authenticate, and the API returns FAILURE

An invalid DNS is any DNS that the specified user cannot access, for example, if the DNS does not exist, if the user does not exist in that DNS, or if all Vaults in that DNS are inactive. It is best practice to inspect the response, compare the desired Vault ID with the list of returned vaultIds, and confirm the DNS matches the expected login. This API only returns FAILURE if it is unable to return a valid sessionIdfor any Vault the user can access.

Basic Authorization

Name Description
Authorization {sessionId}

Alternatively, you can use Salesforce™ or OAuth2/OIDC Delegated Requests.

The Vault API also accepts Vault session IDs as bearer tokens. Include the Bearer keyword to send Vault session IDs as bearer tokens.

Bearer Token Authorization

Name Description
Authorization Bearer {sessionId}

OAuth 2.0 / OpenID Connect

Request

$ curl -X POST \
-H "Authorization: Bearer 1C29326C3DF" \
-H "Host: Bearer 1C29326C3DF" \
"https://my-vault.veevavault.com/auth/oauth/session/_9ad0a091-cbd6-4c59-ab5a-d4f2870f218c"

Response

{
    "responseStatus": "SUCCESS",
    "sessionId": "802E62F765575BEB70642BE7A822A419F48B41312ECCAF4767D8DD956873DEE90D677F053A5DAB00B37E2C6B42FA6B15FCE6147C6120F56A638D911EBDFA007B",
    "userId": 92677,
    "vaultIds": [
        {
            "id": 1004329,
            "name": "My Vault",
            "url": "https://my-vault.veevavault.com/api"
        },
        {
            "id": 1004330,
            "name": "My Vault 2",
            "url": "https://my-vault2.veevavault.com/api"
        }
    ],
    "vaultId": 1004329
}

Authenticate your account using OAuth 2.0 / Open ID Connect token to obtain a Vault Session ID. Learn more about OAuth 2.0 / Open ID Connect in Vault Help.

When requesting a sessionId, Vault allows the ability for Oauth2/OIDC client applications to pass the client_id with the request. Vault uses this client_id when talking with the introspection endpoint at the authorization server to validate that the access_token presented by the application is valid. More information on client_id found in a previous section.

Endpoint

POST https://login.veevavault.com/auth/oauth/session/{oath_oidc_profile_id}

Headers

Name Description
Authorization Bearer {access_token}
Accept application/json (default)

URI Path Parameters

Name Description
oath_oidc_profile_id The ID of your OAuth2.0 / Open ID Connect profile

Body Parameters

Name Description
vaultDNS Optional The DNS of the Vault for which you want to generate a session. If omitted, the session is generated for user’s default Vault.
client_id Optional The ID of the client application at the Authorization server

Authentication Type Discovery

Request

$ curl -X GET \
-H "Accept: application/json" \
"https://login.veevavault.com/auth/discovery?username=meganmurray@veepharm.com&client_id=VaultCheckOut"

Response: Password User

{
    "responseStatus": "SUCCESS",
    "errors": [],
    "data": {
        "auth_type": "password"
    }
}

Response: SSO User

{
    "responseStatus": "SUCCESS",
    "data": {
        "auth_type": "sso",
        "auth_profiles": [
            {
                "id": "_9ad0a091-cbd6-4z59-ab5a-d4f35789918c",
                "label": "VeePharm",
                "description": "",
                "vault_session_endpoint": "https://veepharm.com/auth/oauth/session/_9ad0a091-cbd6-4z59-ab5a-d4f35789918c",
                "use_adal": false,
                "as_client_id":"34524523452345234523452345098098234",
                "as_metadata": {
                    "issuer": "https://veevaintrospection.com/oauth2/asdf123",
                    "authorization_endpoint": "https://veevintrospection.com/oauth2/asdf123/v1/authorize",
                    "token_endpoint": "https://veevaintrospection.com/oauth2/asdf123/v1/token",
                    "registration_endpoint": "https://veevaintrospection.com/oauth2/v1/clients",
                    "jwks_uri": "https://veevaintrospection.com/oauth2/asdf123/v1/keys",
                    "response_types_supported": [
                        "code",
                        "token",
                        "code token"
                    ],
                    "response_modes_supported": [
                        "query"
                    ],
                    "introspection_endpoint": "https://veevatintrospection.com/oauth2/asdf1234/v1/introspect",
                    "introspection_endpoint_auth_methods_supported": [
                        "client_secret_basic",
                    ],
                    "revocation_endpoint": "https://veevaintrospection.com/oauth2/asdf123/v1/revoke",
                    "revocation_endpoint_auth_methods_supported": [
                        "client_secret_basic",
                    ],
                    "end_session_endpoint": "https://veevaintrospection.com/oauth2/asdf123/v1/logout"
                }
            }
        ]
    }
}

Discover the user's authentication type. With this API, applications can dynamically adjust the login requirements per user, and support either username/password or OAuth2.0 / OpenID Connect authentication schemes.

Endpoint

POST https://login.veevavault.com/auth/discovery

Headers

Name Description
Accept application/json (default)

Query String Parameters

Name Description
username The user’s Vault username
client_id Optional The user's mapped Authorization Server client_id. This only applies the SSO auth_type.

Response Details

The response specifies the user’s authentication type (auth_type):

If the user’s authentication type is sso, the response specifies the user’s authentication profiles (auth_profiles). If the user’s Security Policy is associated with:

If the Authorization Server Provider is set to use ADFS, the use_adal field will appear in the response as true. If the Authorization Server Provider is set to anything else, this field is false.

If the user provides a client_id and Client Application client ID mapping is defined on the OAuth 2.0 / OpenID Connect profile, the as_client_id field will appear in the response with the Authorization Server client ID value. If there is no defined mapping for the specified client_id, Vault will not include the as_client_id field in the response. Learn about Client ID Mapping in Vault Help.

Studies

Vault CDMS uses the Study as the main organization of data for a trial. Components that exist under a Study include Study Countries, Sites, Subjects (also known as Casebooks), Queries, Medical Coding Requests, Study Jobs, and Form data.

Retrieve Studies

Request

curl -L -X GET 'https://myvault.veevavault.com/api/v24.2/app/cdm/studies' \
-H 'Accept: application/json' \
-H 'Authorization: {SESSION_ID}'

Response


{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 2,
        "total": 2
    },
    "studies": [
        {
            "study": "Labrinone_DEV1",
            "study_name": "Labrinone_DEV1",
            "study_label": "Labrinone_DEV1",
            "external_id": "Labrinone",
            "study_phase": "phase_ii__v",
            "study_status": "planning__v",
            "locked": true,
            "last_locked_date": "2023-06-02T12:00:00Z",
            "connect_to_vault_ctms": true,
            "organization": "ABC Pharma",
            "environment_type": "development__v",
            "build_number": 14,
            "casebook_versions": [
                {
                    "casebook_version": 1,
                    "version_name": "Initial Version",
                    "external_id": "1",
                    "previous_version_name": null,
                    "description": null,
                    "change_reason": null,
                    "casebook_status": "in_progress__v",
                    "created_by": "Eric Emerton",
                    "created_date": "2023-02-12T22:32:21Z",
                    "last_modified_date": "2023-03-04T14:16:20Z"
                }
            ]
        },
        {
            "study_name": "ABCP-2022-01_DEV1",
            "external_id": "ABCP-2022-01",
            "study_phase": "phase_i__v",
            "study_status": "execution__v",
            "locked": false,
            "last_locked_date": null,
            "connect_to_vault_ctms": false,
            "organization": "ABC Pharma",
            "environment_type": "development__v",
            "build_number": 43,
            "casebook_versions": [
                {
                    "casebook_version": 2,
                    "version_name": "Version2",
                    "external_id": "Version2",
                    "previous_version_name": "Initial Version",
                    "description": "Casebook Definition with changes  for the ABCP-2022-01_DEV1 study" ,
                    "change_reason": "Layout changes",
                    "casebook_status": "in_progress__v",
                    "created_by": "Maisha Muddaththir",
                    "created_date": "2023-06-28T14:26:34Z",
                    "last_modified_date": "2023-06-28T14:26:34Z"
                },
                {
                    "casebook_version": 1,
                    "version_name": "Initial Version",
                    "external_id": "Initial Version",
                    "previous_version_name": null,
                    "description": "Initial casebook definition version for the ABCP-2022-01_DEV1 study" ,
                    "change_reason": null,
                    "casebook_status": "published__v",
                    "created_by": "Maisha Muddaththir",
                    "created_date": "2023-06-09T13:26:34Z",
                    "last_modified_date": "2023-06-09T13:26:34Z"
                }
            ]
        }
    ]
}

Notes

Endpoint

GET https://my-vault.veevavault.com/api/v24.2/app/cdm/studies

Required Permissions

The following permissions are required to use the Retrieve Studies API:

Both the CDMS API Read Only and CDMS API Read Write roles grant this permission.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

This API supports pagination. By default, the page limit is set to 1000 records. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer or zero). If omitted, the default is 0.

For example, if the limit is set to 100, and there are 150 possible records, an offset of 0 returns records 0 through 99 (zero based). Then, offset of 100 would return records 100 through 149. More information on pagination is in the section Pagination

Response Details

On SUCCESS, Vault returns a list of Studies that you have permission to view.

Array Name Description
studies study This value is always the same as study_label
studies study_name Name of the Study. Although very rare, this may differ from the Study label seen on screen
studies study_label Label of the Study. This is the Study identification through the UI, reports, exports. It can - on rare occasion - differ from study_name (e.g. relabel).
studies external_id External ID field value from the Study record
studies study_phase Study Phase picklist name (not label) from the Study record
studies study_status Study Status picklist name (not label) from the Study record
studies locked Whether the Study is currently locked, or not (true/false)
studies last_locked_date The date/time of the last locking of the Study
studies connect_to_vault_ctms Whether the Study is currently connected to a Vault CTMS (true/false)
studies organization Name of the organization in the Vault that the Study is grouped under
studies environment_type The type of environment for the Study - picklist name (not label)
studies build_number For the Study its build number from Study design. Design and other information can be retrieved in further detail via Retrieve Study Masters when using the main development Vault
studies casebook_versions For each Casebook Version associated with the Study, Vault returns the following as an array:
  • study_name
  • casebook_version
  • version_name
  • external_id
  • previous_version_name
  • description
  • change_reason
  • casebook_status
  • created_by
  • created_date
  • last_modified_by
studies/casebook_versions casebook_version The version number (integer) of the casebook definition
studies/casebook_versions version_name The version name of the casebook definition
studies/casebook_versions external_id The external ID of the casebook definition
studies/casebook_versions previous_version_name Not in use, return is null
studies/casebook_versions description The descripition of the casebook definition
studies/casebook_versions change_reason A reason for the casebook version (if set)
studies/casebook_versions casebook_status The status of the casebook version, e.g. published__v, validated__v, etc. (Vault picklist values)
studies/casebook_versions created_by The name of the user that added (or deployed to) the casebook version
studies/casebook_versions created_date The creation date/time of the add (or deployment)
studies/casebook_versions last_modified_by The name of the user that last modified the casebook definition

Study Countries

Vault CDMS uses a Study Country to group together Sites.

Retrieve Study Countries

Request

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/sites?study_name=ABCP-2022-01_DEV1' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}'

Response

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 3,
        "total": 3
    },
    "study_countries": [
        {
            "study_country": "United States",
            "country": "United States",
            "country_abbreviation": "USA",
            "created_by": "Eric Emerton",
            "created_date": "2022-05-23T17:17:24Z",
            "last_modified_date": "2022-05-23T17:17:24Z"
        },
        {
            "study_country": "Austria",
            "country": "Austria",
            "country_abbreviation": "AUT",
            "created_by": "Eric Emerton",
            "created_date": "2022-05-23T17:22:45Z",
            "last_modified_date": "2022-05-23T17:22:45Z"
        },
        {
            "study_country": "Canada",
            "country": "Canada",
            "country_abbreviation": "CAN",
            "created_by": "Eric Emerton",
            "created_date": "2022-05-23T17:22:53Z",
            "last_modified_date": "2022-05-23T17:22:53Z"
        }
    ]
}

Notes

Endpoint

GET /api/{version}/app/cdm/studycountries

Required Permissions

The following permissions are required to use the Retrieve Study Countries API:

Vault only returns Study Countries to which the logged in user has access, even if more Study Countries exist.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Query Parameters

Include the following parameters to filter the results:

Name Description
study_name The Name (Study Number) of the Study (study__v.name__v) that you want to retrieve the study countries for, returned as study_name by the Retrieve Studies API.
study Alternatively, indicate the label of the Study (study__v.label__v). Only one or the other is supplied, not both.

This API supports pagination. By default, the page limit is set to 1000 records. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer). If omitted, the default is 1.

For example, if the limit is set to "100", and there are 150 possible records, use "101" as the offset to show results 101 through 150.

Response Details

Vault returns the following details about each Study Country:

Array Name Description
study_countries study_country The Name of the Study Country (study_country__v.name__v)
study_countries country The Name of the Country for the Study Country (study_country__vr.country__v.name__v)
study_countries abbreviation The Abbreviation of the Country for the Study Country (study_country__vr.country__v.abbreviation__v)
study_countries created_by The User Name of the User who created the Study Country (study_country__v.created_by__v)
study_countries created_date The Created Date for the Study Country (study_country__v.created_date__v)
study_countries last_modified_by The Last Modified Date for the Study Country (study_country__v.last_modified_date__v)

If the Study does not yet contain any Study Countries, Vault returns an empty array (example to the right)

{
    "responseStatus": "SUCCESS",
    "study_countries": []
}

Sites

A Site in Vault CDMS represents a single clinical research location. A given Study may have any number of Sites, under which are the Subjects of the Site. Properties for a Site include status, assigned Casebook version for newly added Subjects, principal investigator, Review Plans, and the Study Country to which they belong. Learn more about Sites in CDMS Help.

Retrieve Sites

Request - All sites in the study

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/sites?study_name=ABCP-2022-01_DEV1' \
-H 'Accept: application/json' \
-H 'Authorization: {SESSION_ID}'

Response - All sites in the study

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 4,
        "total": 4
    },
    "sites": [
        {
            "site": "101",
            "site_name": "Cary Hospital",
            "site_status": "active__v",
            "site_closeout_status": "",
            "study_country": "United States",
            "principal_investigator": "Linda Johnson",
            "casebook_version": 1,
            "timezone": "(GMT-05:00) Eastern Standard Time (America/New_York)"
        },
        {
            "site": "102",
            "site_name": "Raleigh Hospital",
            "site_status": "active__v",
            "site_closeout_status": "",
            "study_country": "United States",
            "principal_investigator": "Mary Peters",
            "casebook_version": 1,
            "timezone": "(GMT-05:00) Eastern Standard Time (America/New_York)"
        },
        {
            "site": "201",
            "site_name": "Montreal General",
            "site_status": "active__v",
            "site_closeout_status": "",
            "study_country": "Canada",
            "principal_investigator": "Jim Jones",
            "casebook_version": 1,
            "timezone": "(GMT-06:00) Central Standard Time (America/Chicago)"
        },
        {
            "site": "202",
            "site_name": "No Active CB Version",
            "site_status": "active__v",
            "site_closeout_status": "",
            "study_country": "United States",
            "principal_investigator": "Mary Smith",
            "casebook_version": null,
            "timezone": "(GMT-05:00) Eastern Standard Time (America/New_York)"
        }
    ]
}

Request - No sites in study yet

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/sites?study_name=ABCP-2022-01_DEV1' \
-H 'Accept: application/json' \
-H 'Authorization: {SESSION_ID}'

Response - No sites in study yet

{
    "responseStatus": "SUCCESS",
    "sites": []
}

Notes

Endpoint

GET https://my-vault.veevavault.com/api/v24.2/app/cdm/sites

Required Permissions

The following permissions are required to use the Retrieve Sites API:

Both the CDMS API Read Only and CDMS API Read Write roles grant this permission.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Query String Parameters

Name Description
study_name Name of the Study.
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country Optional Name of Study Country to filter on. If omitted, Vault returns all Sites.

This API supports pagination. By default, the page limit is set to 1000 records. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer or zero). If omitted, the default is 0.

For example, if the limit is set to 100, and there are 150 possible records, an offset of 0 returns records 0 through 99 (zero based). Then, offset of 100 would return records 100 through 149. More information on pagination is in the section Pagination

Response Details

In the RESPONSE, Vault returns the following details about each Site:

Array Name Description
sites site Site Number of the Site e.g. 101, 102, 201, or however the study defines Site numbering
sites site_name Name of the Site. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
sites site_status Status of the Site. This is one of the following possible statuses:
  • qualifying__v (Qualifying)
  • initiating__v (Initiating)
  • active__v (Active)
  • closed__v (Closed)
  • enrollment_complete__v (Enrollment Complete)
  • terminated__v (Terminated)
  • withdrew__v (Withdrew)
  • archived__v (Archived)
  • did_not_participate__v (Did Not Participate)
  • candidate__v (Candidate)
sites site_closeout_status Closeout Status of the Site. If the closeout process hasn't started for the Site, this value is blank ("").This is one of the following possible statuses:
  • generating_closeout_pdfs__v (Generating Closeout PDFs)
  • generation_failed__v (Generation Failed)
  • ready_for_site__v (Ready for Site)
  • awaiting_site_response__v (Awaiting Site Response)
  • downloaded_by_site__v (Downloaded by Site)
  • accepted_by_site__v (Accepted by Site)
  • rejected_by_site__v (Rejected by Site)
  • site_unlocked__v (Site Unlocked)
Learn more about closeout.
sites study_country Name of the Study Country of the Site
sites principal_investigator The Principal Investigator assigned to the Site
sites casebook_version Casebook Version of the Site. This is the version of the Study scheduled of Events / Forms newly created Subjects will receive. Some Sites might be on different versions of the design (all Sites do not have to be on the same version at once). This important version is assigned by a user via the UI, at Tools -> EDC Tools. Learn more about Sites in CDMS Help
sites timezone The Timezone of the Site (site__v.timezone__v)

Subjects / Casebooks

Vault CDMS uses two objects to manage participants in a Study: Subject and Casebook. For the purposes of the CDMS API, these are synonyms. A Subject record represents an individual participating in a Study. This object is where Vault tracks the Subject's status as they progress through the Study. A Subject's Casebook object record contains all other information, including visits and form data, for that Subject in the given Study.

Retrieve Subjects

Request - By Study Context

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects?study_name=ABCP-2022-01_DEV1' \
-H 'Authorization: {SESSION_ID}'

Response - By Study Context

{
   "responseStatus": "SUCCESS",
   "responseDetails": {
       "limit": 1000,
       "offset": 0,
       "size": 7,
       "total": 7
   },
   "subjects": [
       {
           "id": "OPP00000000I001",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "101",
           "subject": "SCR-0006",
           "status": "pre_screen__v",
           "created_date": "2022-02-04T20:11:46Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2022-02-04T20:11:46Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000000I001&tab_name=data_entry__v"
       },
       {
           "id": "OPP00000000H001",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "101",
           "subject": "SCR-0005",
           "status": "pre_screen__v",
           "created_date": "2022-02-04T20:11:32Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2022-02-04T20:11:32Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000000H001&tab_name=data_entry__v"
       },
       {
           "id": "OPP00000000A001",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "102",
           "subject": "102-001",
           "status": "in_screening__v",
           "created_date": "2021-09-21T23:12:55Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2021-09-21T23:13:42Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000000A001&tab_name=data_entry__v"
       },
       {
           "id": "OPP000000009002",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "101",
           "subject": "101-003",
           "status": "in_screening__v",
           "created_date": "2021-09-21T23:08:00Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2021-09-21T23:12:44Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000009002&tab_name=data_entry__v"
       },
       {
           "id": "OPP000000009001",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "101",
           "subject": "101-002",
           "status": "in_screening__v",
           "created_date": "2021-09-21T23:07:07Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2021-09-21T23:07:50Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000009001&tab_name=data_entry__v"
       },
       {
           "id": "OPP000000000501",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "101",
           "subject": "101-001",
           "status": "enrolled__v",
           "created_date": "2021-02-12T18:51:53Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2021-03-11T20:23:56Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000501&tab_name=data_entry__v"
       },
       {
           "id": "OPP000000000502",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "103",
           "subject": "103-001",
           "status": "enrolled__v",
           "created_date": "2020-02-12T18:51:53Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2022-08-11T20:23:56Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000502&tab_name=data_entry__v"
       }
   ]
}

Request - By IDs (two specific)

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects?study_name=ABCP-2022-01_DEV1&id=OPP00000000I001,OPP00000000H001' \
-H 'Authorization: {SESSION_ID}'

Response - By IDs (two specific)

{
   "responseStatus": "SUCCESS",
   "responseDetails": {
       "limit": 1000,
       "offset": 0,
       "size": 2,
       "total": 2
   },
   "subjects": [
       {
           "id": "OPP00000000I001",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "101",
           "subject": "SCR-0006",
           "status": "pre_screen__v",
           "created_date": "2022-02-04T20:11:46Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2022-02-04T20:11:46Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000000I001&tab_name=data_entry__v"
       },
       {
           "id": "OPP00000000H001",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "101",
           "subject": "SCR-0005",
           "status": "pre_screen__v",
           "created_date": "2022-02-04T20:11:32Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2022-02-04T20:11:32Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000000H001&tab_name=data_entry__v"
       }
   ]
}

Request - By Multiple Sites

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects?study_name=ABCP-2022-01_DEV1&site=102,103' \
-H 'Authorization: {SESSION_ID}'

Response - By Multiple Sites

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 4,
        "total": 4
    },
    "subjects": [
        {
           "id": "OPP00000001U002",
           "study_name": "ABCP-2022-01_DEV1",
           "site": "102",
           "site_name": "Raleigh Hospital",
           "study_country": "United States",
           "subject": "102-001",
           "status": "pre_screen__v",
           "casebook_version": 1,
           "created_date": "2022-07-07T16:40:24Z",
           "created_by": "Eric Emerton",
           "last_modified_date": "2022-07-07T16:40:25Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000001U002&tab_name=data_entry__v"
        },
        {
           "id": "OPP00000001I004",
           "study_name": "ABCP-2022-01_DEV1",
           "site": "102",
           "site_name": "Raleigh Hospital",
           "study_country": "United States",
           "subject": "SCR-0001",
           "status": "in_screening__v",
           "casebook_version": 1,
           "created_date": "2022-05-23T18:36:00Z",
           "created_by": "Eric Emerton",
           "screened_date": "2022-01-03",
           "last_modified_date": "2022-07-05T13:04:00Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000001I004&tab_name=data_entry__v"
        },
        {
           "id": "OPP00000001Q003",
           "study_name": "ABCP-2022-01_DEV1",
           "site": "102",
           "site_name": "Raleigh Hospital",
           "study_country": "United States",
           "subject": "SCR-0002",
           "status": "complete__v",
           "casebook_version": 1,
           "created_date": "2022-06-22T20:53:42Z",
           "created_by": "Eric Emerton",
           "initial_consent_date": "2022-06-02",
           "screened_date": "2022-06-01",
           "screen_failed_date": "2022-06-02",
           "enrolled_date": "2022-06-04",
           "randomized_date": "2022-06-03",
           "start_treatment_date": "2022-06-21",
           "end_treatment_date": "2022-06-06",
           "withdrawn_date": "2022-06-05",
           "started_follow_up_date": "2022-06-28",
           "lost_to_follow_up_date": "2022-06-30",
           "end_study_date": "2022-06-07",
           "last_modified_date": "2022-06-23T17:20:06Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000001Q003&tab_name=data_entry__v"
        },
        {
           "id": "OPP000000000502",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "103",
           "subject": "103-001",
           "status": "enrolled__v",
           "created_date": "2022-02-12T18:51:53Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2022-08-11T20:23:56Z",
           "casebook_version": 1,
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000502&tab_name=data_entry__v"
       }
    ]
}

Request - Where Subjects have IXRS IDs

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects?study_name=ABCP-2022-01_DEV1&site=103' \
-H 'Authorization: {SESSION_ID}'

Response - Where Subjects have IXRS IDs

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 2,
        "total": 2
    },
    "subjects": [
        {
           "id": "OPP000000000502",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "103",
           "subject": "103-001",
           "status": "enrolled__v",
           "created_date": "2022-02-12T18:51:53Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2022-08-11T20:23:56Z",
           "casebook_version": 1,
           "ixrs_id": "1234-ABCDE-456",
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000502&tab_name=data_entry__v"
       },
       {
           "id": "OPP000000000503",
           "study_name": "ABCP-2022-01_DEV1",
           "study_country": "United States",
           "site": "103",
           "subject": "103-001",
           "status": "enrolled__v",
           "created_date": "2022-02-12T18:51:53Z",
           "created_by": "Cordelia Hunter",
           "last_modified_date": "2022-08-11T20:23:56Z",
           "casebook_version": 1,
           "ixrs_id": "1234-ABCDE-479",
           "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000503&tab_name=data_entry__v"
       }
    ]
}

Notes

Style Example Results / Notes
Study Context .../subjects?study_name={..} All subjects
Study Context .../subjects?study_name={..}&study_country=Canada&site=101 Site 101 subjects
Study Context .../subjects?study_name={..}&site=101 Site 101 subjects (with/without country, same)
Study Context .../subjects?study_name={..}&site=101,102 Site 101 and Site 102 subjects
Study Context .../subjects?study_name={..}&site=101,102,501 Site 101 and Site 102 subjects (same, 501 does not exist)
Study Context .../subjects?study_name={..}&site=501,502 ERROR - Neither exists, error return (not empty array), that is, no valid sites
Study Context .../subjects?study_name={..}&study_country=Canada&site=101,102 ERROR - Multi site search is not allowed when including a study country, even if both reside at that country
Study Context .../subjects?study_name={..}&last_modified_date=2023-07-01T12:00:00Z Subjects modified since July 1st, 12:00 UTC
By ID .../subjects?study_name={..}&id=OPP00000001V002 Just the one subject with matching Vault ID, assuming valid
By ID .../subjects?study_name={..}&id=OPP00000001V002,OPP00000001V003 The two subjects, assuming both are valid Vault IDs
By ID .../subjects?study_name={..}&id=OPP00000001V077,OPP00000001V088 Assuming neither exists, an empty JSON Array (not an error)

Endpoint

GET https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects

Required Permissions

The following permissions are required to use the Retrieve Subjects API:

Both the CDMS API Read Only and CDMS API Read Write roles grant this permission.

Headers

Name Description
Accept application/json (default)

Query String Parameters (by Study Context)

Name Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country Optional Name of the Study Country to filter on. If omitted, Vault returns all Subjects for the given Study.
site Optional Name of the Sites to filter on (comma-separated). If omitted, Vault returns all Subjects for the Study. If multiple is provided, Study Country must by omitted, even if the multiple listed are all from the same Study Country
last_modified_date Optional Filter to only Subjects modified after the specified datetime. Use the format: "yyyy-MM-ddTHH:mm:ssZ". If omitted, Vault retrieves all Subjects for the Study with respect to last modified date.

Query String Parameters (by ID)

Name Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
id The Vault internal ID of the Subject, or multiple in a comma-separated list. The id value can be found from Retrieve Subjects. This parameter cannot be used in conjunction with Study Country or Site or last modified filters

This API supports pagination. By default, the page limit is set to 1000 records. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer or zero). If omitted, the default is 0.

For example, if the limit is set to 100, and there are 150 possible records, an offset of 0 returns records 0 through 99 (zero based). Then, offset of 100 would return records 100 through 149. More information on pagination is in the section Pagination

Response Details

On SUCCESS, Vault returns a list of Subjects meeting your filter criteria. If there are no Subjects meeting your filter criteria, Vault returns an empty array.

Array Name Description
subjects study_name Name of the Study
subjects study Label of the Study.
subjects id Vault internal ID for the Subject (will never change, whereas subject name might)
subjects site Name of the Site assigned to the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subjects study_country Name of the Study Country assigned to the Subject
subjects subject Subject ID (Name) of the Subject
subjects status Subject Status assigned to the Subject. Common statuses include:
  • pre_screen__v
  • in_screening__v
  • screen_failure__v
  • enrolled__v
  • withdrawn__v
  • complete__v
  • randomized__v
  • end_of_treatment__v
  • consented__v
  • started_treatment__v
  • started_follow_up__v
  • lost_to_follow_up__v
subjects created_date The datetime that the Subject was first created
subjects created_by Name (Firstname Lastname) of the User who created the Subject
subjects initial_consent_date* Initial Consent Date for the Subject (only present when a non-empty value)
subjects screened_date* Screened Date for the Subject (only present when a non-empty value)
subjects screen_failed_date* Screen Failed Date for the Subject (only present when a non-empty value)
subjects enrolled_date* Enrolled Date for the Subject (only present when a non-empty value)
subjects randomized_date* Randomized Date for the Subject (only present when a non-empty value)
subjects start_treatment_date* Start Treatment Date for the Subject (only present when a non-empty value)
subjects end_treatment_date* End Treatment Date for the Subject (only present when a non-empty value)
subjects withdrawn_date* Withdrawn Date for the Subject (only present when a non-empty value)
subjects started_follow_up_date* Started Follow Up Date for the Subject (only present when a non-empty value)
subjects lost_to_follow_up_date* Lost to Follow Up Date for the Subject (only present when a non-empty value)
subjects end_study_date* End Study Date for the Subject (only present when a non-empty value)
subjects last_modified_date The datetime that the Subject was last updated
subjects casebook_version The study design casebook version of the Subject, currently
subjects ixrs_id An external ID, typically from IXRS/IRT upstream system. The value would have been set at creation of the Subject (only present when a non-empty value)
subjects cdms_url Relative URL to the Subject, at the Data Entry tab

Create Subjects (Casebooks)

Request - Two subjects created at once

curl -X POST  https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
        {
            "study_country": "United States"
            "site": "101"
        },
        {
            "study_country": "United States",
            "site": "102"
        }
    ]
}'

Response - Two subjects created at once

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0003",
            "id": "OPP00000001V002",
            "ixrs_id": "",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000001V002&tab_name=data_entry__v"
        },
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "102",
            "subject": "SCR-0004",
            "id": "OPP00000001V003",
            "ixrs_id": "",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000001V003&tab_name=data_entry__v"
        }
    ]
}

Request - Two subjects attempted, with specific numbering, one fails

curl -X POST  https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
        {
            "study_country": "United States"
            "site": "101" ,
            "subject": "101-001"
        },
        {
            "study_country": "Belgium",
            "site": "103" ,
            "subject": "103-001"
        }
    ]
}'

Response - Two subjects attempted, with specific numbering, one fails

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States"
            "site": "101",
            "subject": "101-001",
            "id": "OPP00000001V005",
            "ixrs_id": "",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000001V005&tab_name=data_entry__v"
        },
        {
            "responseStatus": "FAILURE",
            "errorMessage": "[Study Country] with name [Belgium] not found"
            "study_country": "Belgium"
            "site": "103",
            "subject": "103-001"
        }
    ]
}

Request - Two subjects, with IXRS IDs

curl -X POST  https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
        {
            "study_country": "United States"
            "site": "101" ,
            "subject": "101-001",
            "ixrs_id": "ABC-123123-56"
        },
        {
            "study_country": "Belgium",
            "site": "103" ,
            "subject": "103-001",
            "ixrs_id": "ABC-123123-78"
        }
    ]
}'

Response - Two subjects, with IXRS IDs

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States"
            "site": "101",
            "subject": "101-001",
            "id": "OPP00000001V005",
            "ixrs_id": "ABC-123123-56",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000001V005&tab_name=data_entry__v"
        },
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States"
            "site": "101",
            "subject": "101-001",
            "id": "OPP00000001V006",
            "ixrs_id": "ABC-123123-78",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP00000001V006&tab_name=data_entry__v"
        }
    ]
}

Notes

Endpoint

POST https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects

Required Permissions

The following permissions are required to use the Create Subjects (Casebooks) API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study to contain the Subject/Casebook (study__v.name__v)
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country subjects Name of the Study Country for the site of Subject/Casebook
site subjects Name of the Site for the Subject/Casebook. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject subjects Optional The Subject ID (subject__v.name__v) on create of the Subject. If you don’t include a subject, Vault creates a screening number for the Subject. (e.g. SCR-000X, depending on study design).
ixrs_id subjects Optional The value in an IRT/IXRS system who adds the Subject, i.e. the ID it identifies the Subject with.

Set Subject Status

Request

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/setstatus' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-0010",
            "subject_status": "randomized__v",
            "date": "2020-03-03"
        }
    ]
}'

Response

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States"
            "site": "101",
            "subject": "101-0010",
            "subject_status": "randomized__v"
        }
    ]
}

Notes

Order Subject Status API Value Return in Retrieve Subjects
1 Pre Screen
2 Consented consented__v initial_consent_date
3 In Screening in_screening__v screened_date
4 Screen Failure screen_failure__v screen_failed_date
5 Enrolled enrolled__v enrolled_date
6 Randomized randomized__v randomized_date
7 Started Treatment started_treatment__v started_treatment_date
8 End Of Treatment end_of_treatment__v end_of_treatment_date
9 Withdrawn withdrawn__v withdrawn_date
10 Started Follow Up started_follow_up__v started_follow_up_date
11 Lost to Follow Up lost_to_follow_up__v lost_to_follow_up_date
12 Complete complete__v end_of_study_date

Endpoint

POST https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/setstatus

Required Permissions

The following permissions are required to use the Set Subject Status API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json (default)

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country subjects Name of the Study Country of the Subject
site subjects Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject subjects Name of the Subject (ID / number)
subject_status subjects The status to set for the Subject. As of this release only one entry in the subjects array is allowed per request.
date subjects The date to set for the status milestone for the Subject. Use yyyy-MM-dd format for the status milestone date.

Unset Subject Status

Request

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/unsetstatus' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
        {
            "site": "101",
            "study_country": "United States",
            "subject": "101-0010",
            "subject_status": "enrolled__v"
        }
    ]
}'

Response

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States"
            "site": "101",
            "subject": "101-0010",
            "subject_status": "in_screening__v"
        }
    ]
}

Notes

Endpoint

POST https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/unsetstatus

Required Permissions

The following permissions are required to use the Unset Subject Status API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json (default)

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country subjects Name of the Study Country of the Subject
site subjects Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject subjects Name of the Subject (ID / number)
subject_status subjects The status to unset for the Subject. As of this release only one entry in the subjects array is allowed per request. The Subject will remain in the highest possible status. See the list above.

Update Subject

Request - Set new subject number

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/update' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
            {
                "study_country": "United States",
                "site": "101",
                "subject": "101-002",
                "subject_new": "101-005"
            }
        ]
}'

Response - Set new subject number

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPP000000000501",
            "study_country": "United States",
            "site": "101",
            "subject": "101-002",
            "subject_new": "101-005",
            "ixrs_id": "234-23_ABC",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000501&tab_name=data_entry__v"
        }
    ]
}

Request - Update an IXRS id

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/update' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
            {
                "study_country": "United States",
                "site": "101",
                "subject": "101-002",
                "ixrs_id": "234-23_ABC_v2"
            }
        ]
}'

Response - Update an IXRS id

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPP000000000501",
            "study_country": "United States",
            "site": "101",
            "subject": "101-002",
            "subject_new": null,
            "ixrs_id": "234-23_ABC_v2",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000501&tab_name=data_entry__v"
        }
    ]
}

Notes

Endpoint

POST https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/update

Required Permissions

The following permissions are required to use the Update Subject API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json (default)

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country subjects Name of the Study Country of the Subject
site subjects Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject subjects Name of the Subject (ID / number) now
subject_new subjects Optional Name of the Subject (ID / number) to change to
ixrs_id subjects Optional IXRS id value to update to

Update Subject by ID

Request - Set new subject number

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/updatebyid' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
            {
                "id": "OPP000000000501",
                "subject_new": "101-005"
            }
        ]
}'

Response - Set new subject number

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPP000000000501",
            "subject_new": "101-005",
            "ixrs_id": "234-23_ABC",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000501&tab_name=data_entry__v"
        }
    ]
}

Request - Update an IXRS id

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/updatebyid' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "subjects": [
            {
                "id": "OPP000000000501",
                "ixrs_id": "234-23_ABC_v2"
            }
        ]
}'

Response - Update an IXRS id

{
    "responseStatus": "SUCCESS",
    "subjects": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPP000000000501",
            "subject_new": null,
            "ixrs_id": "234-23_ABC_v2",
            "cdms_url": "/ui/#app/page/object-redirect?object_type=subject__v&object_id=114107_OPP000000000501&tab_name=data_entry__v"
        }
    ]
}

Notes

Endpoint

POST https://my-vault.veevavault.com/api/v24.2/app/cdm/subjects/actions/updatebyid

Required Permissions

The following permissions are required to use the Update Subject by ID API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json (default)

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
id subjects ID of the Subject
subject_new subjects Optional Name of the Subject (ID / number) to change to
ixrs_id subjects Optional IXRS id value to update to

Event Groups

Vault CDMS groups related Events - oftern referred to as visits - together in Event Groups. The group can contain one Event (e.g. unscheduled visit, screening visit), or many (e.g. treatment period). An Event Group can also repeat (e.g. cycles for a Study).

Create Event Groups

Request - Create Scheduled Event Group

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/eventgroups \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '
  {
    "study_name": "ABCP-2022-01_DEV1",
    "eventgroups": [
      {
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "main_visits"
      }
    ]
  }'

Response - Create Scheduled Event Group

{
    "responseStatus": "SUCCESS",
    "eventgroups": [
        {
            "responseStatus": "SUCCESS",
                "study_country": "United States",
                "site": "101",
                "subject": "101-001",
                "eventgroup_name": "main_visits"
        }
    ]
}

Request - Create Unscheduled Event Group (requires a date)

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/eventgroups \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '
  {
    "study_name": "ABCP-2022-01_DEV1",
    "eventgroups": [
      {
        "study_country": "United States"
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "unscheduled_treatment_visits",
        "date": "2022-03-03"
      }
    ]
  }'

Response - Create Unscheduled Event Group (requires a date)

{
    "responseStatus": "SUCCESS",
    "eventgroups": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "unscheduled_treatment_visits",
            "date": "2022-03-03",
            "externally_owned_date": true
        }
     ]
}

Notes

Use Case Description
Integration Only Add of an area for integration data, that only the integration should control (not an end user).
Unscheduled Unscheduled Event, which requires a date (format: yyyy-MM-dd) for the action. externally_owned_date = true will be set as a property on the date.
Cycles These repeating Event Groups contain the same collection of Events and Forms for each sequence (repetition) of the Event Group, e.g. Day 1, Day 8, Day 15 visits (each cycle). Each new Event Group may have a customized label, such as Cycle 1, Cycle 2, Cycle 3, and so on.

Endpoint

POST https://my-vault.veevavault.com/api/v24.2/app/cdm/eventgroups

Required Permissions

The following permissions are required to use the Create Event Groups API:

API Access View Casebook Data Entry

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country eventgroups Name of the Study Country of the Subject
site eventgroups Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject eventgroups Name of the Subject (ID / number) where the Event Group is added
eventgroup_name eventgroups Study design name of the Event Group
date eventgroups Optional Date for the Event of the Event Group. Use "yyyy-mm-dd" format. This is only applicable to unscheduled type Event Groups. If omitted and an unscheduled Event Group, Vault sets the date to the current date.

Upsert Event Groups

Request - Attempt when Event does not exist

curl -X PUT https://my-vault.veevavault.com/api/v24.2/app/cdm/eventgroups \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '
  {
    "study_name": "ABCP-2022-01_DEV1",
    "eventgroups": [
      {
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "unscheduled_treatment_visits",
        "eventgroup_sequence": 1,
        "date": "2022-03-03"
      }
    ]
  }'

Response - Attempt when Event does not exist

{
    "responseStatus": "SUCCESS",
    "eventgroups": [
      {
          "responseStatus": "SUCCESS:CREATED",
          "study_country": "United States",
          "site": "101",
          "subject": "101-001",
          "eventgroup_name": "unscheduled_treatment_visits",
          "eventgroup_sequence": 1,
          "date": "2022-03-03",
          "externally_owned_date": true
      }
   ]
}

Request - Attempt to create sequence 2 and 3, with 2 already existing

curl -X PUT https://my-vault.veevavault.com/api/v24.2/app/cdm/eventgroups \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '
  {
    "study_name": "ABCP-2022-01_DEV1",
    "eventgroups": [
      {
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "unscheduled_treatment_visits",
        "eventgroup_sequence": 2,
        "date": "2022-04-03"
      },
      {
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "unscheduled_treatment_visits",
        "eventgroup_sequence": 3,
        "date": "2022-05-03"
      }
    ]
  }'

Response - Attempt to create sequence 2 and 3, with 2 already existing

{
    "responseStatus": "SUCCESS",
    "eventgroups": [
      {
          "responseStatus": "SUCCESS:UPDATED",
          "study_country": "United States",
          "site": "101",
          "subject": "101-001",
          "eventgroup_name": "unscheduled_treatment_visits",
          "eventgroup_sequence": 2,
          "date": "2022-04-03",
          "externally_owned_date": true
      },
      {
          "responseStatus": "SUCCESS:CREATED",
          "study_country": "United States",
          "site": "101",
          "subject": "101-001",
          "eventgroup_name": "unscheduled_treatment_visits",
          "eventgroup_sequence": 3,
          "date": "2022-05-03",
          "externally_owned_date": true
      }
   ]
}

Notes

Use Case Description
Integration Only Add of an area for integration data, that only the integration should control (not an end user).
Unscheduled Unscheduled Event, which requires a date (format: yyyy-MM-dd) for the action. externally_owned_date = true will be set as a property on the date.
Cycles Studies with Cycles - these repeating Event Groups contain the same collection of Events and Forms for each sequence (repetition) of the Event Group, e.g. Day 1, Day 8, Day 15 visits (each cycle). Each new Event Group may have a customized label, such as Cycle 1, Cycle 2, Cycle 3, and so on.

Endpoint

PUT /api/{version}/app/cdm/eventgroups

Required Permissions

The following permissions are required to use the Upsert Event Groups API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country eventgroups Name of the Study Country of the Subject
site eventgroups Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject eventgroups Name of the Subject (ID / number) where the Event Group is added
eventgroup_name eventgroups Study design name of the Event Group
eventgroup_sequence eventgroups Sequence of the Event Group that should be added (if does not exist), otherwise skipped
date eventgroups Optional Date for the Event Group. Use "yyyy-mm-dd" format. This is only applicable to unscheduled type Event Groups. If omitted and an unscheduled Event Group, Vault sets the date to the current date.

Events

Vault CDMS tracks visits as an Event. Each Event contains the Forms collected during that visit. The parent container of an Event is an Event Group. When an Event repeats, it is because the Event Group it resides within repeats. The sequence number in the hierarchy for a repeating Event is at the Event Group level.

Retrieve Events / Forms

Request

curl -L -X GET 'https://myvault.veevavault.com/api/v24.2/app/cdm/events?study_name=ABCP-2022-01_DEV1&study_country=United%20States&site=0101&subject=0101-0003' \
-H 'Authorization: [SESSION_ID]' \
-H 'Content-Type: application/json'

Response

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 5,
        "total": 5
    },
    "events": [
        {
            "id": "OPS00000001M006",
            "study_country": "United States",
            "site": "0101",
            "subject": "0101-0003",
            "eventgroup_name": "screening",
            "eventgroup_sequence": 1,
            "event_name": "screening_visit",
            "event_sequence": 1,
            "locked": false,
            "frozen": false,
            "event_date": "2020-02-03",
            "externally_owned_date": true,
            "event_did_not_occur": false,
            "method": "on_site_visit__v",
            "externally_owned_method": false,
            "forms": [
                {
                    "id": "OPT00000001M002",
                    "form_name": "demographics",
                    "form_sequence": 1,
                    "form_status": "submitted__v",
                    "locked": false,
                    "frozen": false,
                    "first_submit_date": "2023-07-11T17:38:15Z",
                    "last_submit_date": "2023-07-11T17:38:15Z",
                    "intentionally_left_blank": false
                },
                {
                    "id": "OPT00000001M003",
                    "form_name": "exclusion_criteria",
                    "form_sequence": 1,
                    "form_status": "submitted__v",
                    "locked": false,
                    "frozen": false,
                    "first_submit_date": "2023-07-11T17:38:15Z",
                    "last_submit_date": "2023-07-14T12:11:33Z",
                    "intentionally_left_blank": false
                },
                {
                    "id": "OPT00000001M004",
                    "form_name": "inclusion_criteria",
                    "form_sequence": 1,
                    "form_status": "submitted__v",
                    "first_submit_date": "2023-08-25T15:22:33Z",
                    "last_submit_date": "2023-08-25T15:22:33Z",
                    "locked": false,
                    "frozen": false,
                    "intentionally_left_blank": true,
                    "intentionally_left_blank_reason": "Information not available"
                }
            ]
        },
        {
            "id": "OPS00000001M009",
            "study_country": "United States",
            "site": "0101",
            "subject": "0101-0003",
            "eventgroup_name": "re_screen",
            "eventgroup_sequence": 1,
            "event_name": "baseline_visit",
            "event_sequence": 1,
            "locked": false,
            "frozen": false,
            "event_date": "",
            "externally_owned_date": false,
            "event_did_not_occur": true,
            "event_did_not_occur_reason": "Subject passed screening initially",
            "method": null,
            "externally_owned_method": false,
            "forms": []
        },
        {
            "id": "OPS00000001M011",
            "study_country": "United States",
            "site": "0101",
            "subject": "0101-0003",
            "eventgroup_name": "enrollment",
            "eventgroup_sequence": 1,
            "event_name": "enrollment_visit",
            "event_sequence": 1,
            "locked": false,
            "frozen": false,
            "event_date": "2020-02-07",
            "externally_owned_date": false,
            "event_did_not_occur": false,
            "method": "on_site_visit__v",
            "externally_owned_method": true,
            "forms": [
                {
                    "id": "OPT00000001M007",
                    "form_name": "randomization",
                    "form_sequence": 1,
                    "form_status": "submitted__v",
                    "locked": false,
                    "frozen": false,
                    "first_submit_date": "2023-08-29T15:22:33Z",
                    "last_submit_date": "2023-08-29T15:22:33Z",
                    "intentionally_left_blank": false
                }
            ]
        },
        {
            "id": "OPS00000001M008",
            "study_country": "United States",
            "site": "0101",
            "subject": "0101-0003",
            "eventgroup_name": "treatment_visit",
            "eventgroup_sequence": 1,
            "event_name": "treatment_visit",
            "event_sequence": 1,
            "locked": false,
            "frozen": false,
            "event_date": "",
            "externally_owned_date": false,
            "event_did_not_occur": false,
            "method": null,
            "externally_owned_method": false,
            "forms": []
        },
        {
            "id": "OPS00000001M007",
            "study_country": "United States",
            "site": "0101",
            "subject": "0101-0003",
            "eventgroup_name": "common_forms",
            "eventgroup_sequence": 1,
            "event_name": "common_forms",
            "event_sequence": 1,
            "locked": false,
            "frozen": false,
            "event_date": "",
            "externally_owned_date": false,
            "event_did_not_occur": false,
            "method": null,
            "externally_owned_method": false,
            "forms": []
        }
    ]
}

Notes

Endpoint

GET /api/{version}/app/cdm/events

Required Permissions

The following permissions are required to use the Retrieve Events API:

The CDMS API Read Write and CDMS API Read Only roles grant these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Query String Parameters

Name Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country Name of the Study Country for the site of the Subject
site Name of the Site for the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject Name (ID/number) of the Subject
eventgroup_name Optional Study design name for a specific Event Group to filter the return on
eventgroup_sequence Optional Specific sequence to filter the return on
event_name Optional Study design name for a specific Event to filter the return on

This API supports pagination. By default, the page limit is set to 1000 records. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer or zero). If omitted, the default is 0.

For example, if the limit is set to 100, and there are 150 possible records, an offset of 0 returns records 0 through 99 (zero based). Then, offset of 100 would return records 100 through 149. More information on pagination is in the section Pagination

Response Details

On SUCCESS, Vault returns a list of Events and Forms within for a single Subject. Details of the response:

Array Name Description
events id Vault internal ID for the Event (will never change)
events study_country Name of the Study Country for the site of the Subject
events site Name of the Site for the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
events subject Name (ID/number) of the Subject
events eventgroup_name Study design name for the Event Group
events eventgroup_sequence Sequence of the Event Group of the Event. If its a repeating Event Group, the value increments for each instance, starting at "1", then "2", and so on. If the Event Group isn't repeating, Vault returns "1".
events event_name Study design name for a the Event
events event_sequence Currently, always a 1. If the Event within a repeating Event Group the sequence increments at the evengroup_sequence level
events event_date Event date of the Event. yyyy-MM-dd format is returned.
events externally_owned_date Whether the date is owned by an external system, i.e. read only to the site users.
events event_did_not_occur Whether the event has been marked as not having occurred by a site user. (true/false)
events event_did_not_occur_reason Only when event_did_not_occur is true, otherwise this is omitted.
events method The method of the event/visit, e.g. on_site_visit__v. Methods are configured at specific Events and with specific choices at those Events. Consult the Study Design for when/if they apply at any of the Events for the Study
events externally_owned_method Whether the visit method is owned by an external system, i.e. read only to the site users.
events/forms id Vault internal ID for the Form (will never change)
events/forms form_name Study design name for a Form in the Event (entry per form)
events/forms form_sequence If its a repeating Form, the value increments for each instance, starting at "1", then "2", and so on. If the Form isn't repeating, Vault returns "1".
events/forms form_status The status (picklist name) of that form (e.g. blank__v, submitted__v, etc. See the table below for possible form statuses.
events/forms locked Whether the form is locked (true/false). Locked Forms cannot be updated, nor the queries on them
events/forms frozen Whether the form is locked (true/false). Frozen Forms cannot be updated (data wise), queries can be updated / added.
events/forms first_submit_date The first time the form was submitted.
events/forms last_submit_date The most recent time the form was submitted.
events/forms intentionally_left_blank Whether the Form has been marked intentionally left blank (ILB) by a site user. (true/false)
events/forms intentionally_left_blank_reason When intentionally_left_blank is true for the Form, the reason. Otherwise, omitted.

Form Statuses

Status API Value Notes
Blank blank__v The form is not yet visited (no data points / items), or is visited but all fields are their initial blank status. The form can also take on this status after a reset action
In Progress in_progress__v At least one data point (item) on the form has its first value.
Submitted submitted__v The form is in submitted/completed state. No updates (UI or API) can occur until the form is opened for edit. NOTE: A form can be in submitted status and be additionally marked Intentionally Left Blank. (i.e., reasons for not having the data)
In Progress Post Submit in_progress_post_submit__v Like in_progress__v, but the form has been submitted (then reopened) at least once.

Create Events

Request - Create two events, different subjects

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/events \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "events": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "EG.RANDOMIZATION",
            "event_name": "Subject.Information"
        },
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-002",
            "eventgroup_name": "EG.SCREENING",
            "event_name": "Demographics"
        }
    ]
}

Response - Create two events, different subjects

{
    "responseStatus": "SUCCESS",
    "events": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "EG.RANDOMIZATION",
            "eventgroup_sequence": 1,
            "event_name": "Subject.Enrollment",
            "event_sequence": 1
        },
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "101-002",
            "eventgroup_name": "EG.SCREENING",
            "eventgroup_sequence": 1,
            "event_name": "Subject.ScreeningVisit",
            "event_sequence": 1
        }
    ]
}

Request - Create event inside a repeating event group

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/events \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "events": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "EG.CYCLE_EVENTS",
            "eventgroup_sequence": 3,
            "event_name": "evDAY15"
        }
    ]
}

Response - Create event inside a repeating event group

{
    "responseStatus": "SUCCESS",
    "events": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "EG.CYCLE_EVENTS",
            "eventgroup_sequence": 3,
            "event_name": "evDAY15"
            "event_sequence": 1
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/events

Required Permissions

The following permissions are required to use the Create Events API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country events Name of the Study Country of the Subject
site events Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject events Name of the Subject (ID / number) where the Event is added
eventgroup_name events Study design name of the Event Group
eventgroup_sequence events Optional If omitted, 1 is assumed. Use this parameter to specify an Event of a repeating Event Group
event_name events Study design name of the Event to add

Set Event Date

Request - Set one event date

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/events/actions/setdate \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "events": [
          {
          "study_country": "United States",
          "site": "101",
          "subject": "101-001",
          "eventgroup_name": "Screening-Visit",
          "event_name": "Screening-Visit",
          "date": "2022-05-21"
          }
      ]
    }'

Response - Set one event date

{
    "responseStatus": "SUCCESS",
    "events": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPS00000001M006",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Screening-Visit",
            "eventgroup_sequence": 1,
            "event_name": "Screening-Visit",
            "event_sequence": 1,
            "date": "2022-05-21",
            "externally_owned_date": true,
            "allow_planneddate_override": false,
            "change_reason": "Action performed via the API"
        }
    ]
}

Request - Change one event date

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/events/actions/setdate \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "events": [
          {
          "study_country": "United States",
          "site": "101",
          "subject": "101-001",
          "eventgroup_name": "Screening-Visit",
          "event_name": "Screening-Visit",
          "date": "2022-05-22",
          "change_reason": "Updated by integration - my reason"
          }
      ]
    }'

Response - Change one event date

{
    "responseStatus": "SUCCESS",
    "events": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPS00000001M006",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0002",
            "eventgroup_name": "Screening-Visit",
            "eventgroup_sequence": 1,
            "event_name": "Screening-Visit",
            "event_sequence": 1,
            "date": "2022-05-22",
            "externally_owned_date": true,
            "allow_planneddate_override": false,
            "change_reason": "Updated by integration - my reason"
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/events/actions/setdate

Required Permissions

The following permissions are required to use the Set Event Date API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country events Name of the Study Country of the Subject
site events Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject events Name of the Subject (ID / number)
eventgroup_name events Study design name of the Event Group
eventgroup_sequence events Optional If omitted, 1 is assumed. Use this parameter to specify an Event of a repeating Event Group
event_name events Study design name of the Event to add.
date events The Event date to set, using yyyy-MM-dd format
change_reason events Optional The reason for change of an Event's date, where there is already a value. For example, "Date updated by remote system". When not provided and a reason is required, the system will use a default reason of Action performed via the API
allow_planneddate_override events Optional Set this to true to bypass checking on the Event planned schedule (window/range). Otherwise, an attempt with date outside the planned range will return an error. When omitted, false is assumed.
externally_owned_date events Optional When omitted true is used, i.e. the site user cannot then further edit the date. Pass a false to re-enable the ability for a user to edit a previously read only Event date.

Update Event

Request - Update one event date (no method)

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/events/actions/update \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "events": [
          {
          "study_country": "United States",
          "site": "101",
          "subject": "101-001",
          "eventgroup_name": "Screening-Visit",
          "event_name": "Screening-Visit",
          "date": "2023-12-21"
          }
      ]
    }'

Response - Update one event date (no method)

{
    "responseStatus": "SUCCESS",
    "events": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPS00000001M006",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Screening-Visit",
            "eventgroup_sequence": 1,
            "event_name": "Screening-Visit",
            "event_sequence": 1,
            "date": "2023-12-21",
            "method": null,
            "allow_planneddate_override": false,
            "externally_owned_date": true,
            "externally_owned_method": false
            "change_reason": "Action performed via the API"
        }
    ]
}

Request - Update date and method

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/events/actions/update \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "events": [
          {
          "study_country": "United States",
          "site": "101",
          "subject": "101-001",
          "eventgroup_name": "Screening-Visit",
          "event_name": "Screening-Visit",
          "date": "2023-12-22",
          "method": "on_site_visit__v",
          "change_reason": "Updated by integration - my reason"
          }
      ]
    }'

Response - Update date and method

{
    "responseStatus": "SUCCESS",
    "events": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPS00000001M006",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0002",
            "eventgroup_name": "Screening-Visit",
            "eventgroup_sequence": 1,
            "event_name": "Screening-Visit",
            "event_sequence": 1,
            "date": "2023-23-22",
            "method": "on_site_visit__v",
            "allow_planneddate_override": false,
            "externally_owned_date": true,
            "externally_owned_method": true,
            "change_reason": "Updated by integration - my reason"
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/events/actions/setdate

Required Permissions

The following permissions are required to use the Set Event Date API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country events Name of the Study Country of the Subject
site events Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject events Name of the Subject (ID / number)
eventgroup_name events Study design name of the Event Group
eventgroup_sequence events Optional If omitted, 1 is assumed. Use this parameter to specify an Event of a repeating Event Group
event_name events Study design name of the Event to add.
date events The Event date to set, using yyyy-MM-dd format
method events The method to set, or use *null to unset a previously set value. The value used is dependent on the Study Design, both if allowed at the Event and which values are valid.
change_reason events Optional The reason for change of an Event's date, where there is already a value. For example, "Date updated by remote system". When not provided and a reason is required, the system will use a default reason of Action performed via the API
allow_planneddate_override events Optional Set this to true to bypass checking on the Event planned schedule (window/range). Otherwise, an attempt with date outside the planned range will return an error. When omitted, false is assumed.
externally_owned_date events Optional When omitted true is used, i.e. the site user cannot then further edit the date. Pass a false to re-enable the ability for a user to edit a previously read only Event date.
externally_owned_method events Optional When omitted true is used if the update includes setting of a method. The site user cannot then further edit the value. Pass a false to re-enable the ability for a user to edit a previously read only method.

Set Event as Did Not Occur

Request - Set two events as did not occur

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/events/actions/didnotoccur \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "events": [
     {
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "EG.MAIN",
        "eventgroup_sequence": 1,
        "event_name": "EV.V7",
        "change_reason": "missed visit"
     },
     {
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "EG.MAIN",
        "eventgroup_sequence": 1,
        "event_name": "EV.V8",
        "change_reason": "missed visit"
     }
    ]
}

Response - Set two events as did not occur

{
    "responseStatus": "SUCCESS",
    "events": [
    {
        "responseStatus": "SUCCESS",
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "EG.MAIN",
        "eventgroup_sequence": 1,
        "event_name": "EV.V7",
        "event_sequence": 1
    },
    {
        "responseStatus": "SUCCESS",
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "EG.MAIN",
        "eventgroup_sequence": 1,
        "event_name": "EV.V8",
        "event_sequence": 1
    }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/events/actions/didnotoccur

Required Permissions

The following permissions are required to use the Set Event as Did Not Occur API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country events Name of the Study Country of the Subject
site events Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject events Name of the Subject (ID / number)
eventgroup_name events Study design name of the Event Group
eventgroup_sequence events Optional If omitted, 1 is assumed. Use this parameter to specify an Event of a repeating Event Group
event_name events Study design name of the Event to add.
change_reason events Optional The specific reason to set when marking the Event as Did Not Occur. For example: "Update by integration, subject missed the event."

Forms

Vault CDMS uses Forms to hold like data. Inside the Form are Item Groups (grouping of fields/controls) and Items (fields for a single data point). An Item Group can repeat inside a single form, as per study design needs. Learn more about data entry into Forms in Vault CDMS Help.

Retrieve Forms / Item Data

Request

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/forms?study_name=ABCP-2022-01_DEV1&site=0101&study_country=United%20States&subject=101-001&eventgroup_name=screening&event_name=screening_visit' \
-H 'Authorization:{SESSION_ID}'

Response


{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 4,
        "total": 4
    },
    "forms": [
        {
            "id": "OPT00000001M002",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "screening",
            "eventgroup_sequence": 1,
            "event_name": "screening_visit",
            "event_sequence": 1,
            "event_external_id": "screening_visit",
            "form_name": "demographics",
            "form_sequence": 1,
            "form_status": "submitted__v",
            "locked": false,
            "frozen": false,
            "first_submit_date": "2023-07-11T17:38:15Z",
            "last_submit_date": "2023-07-14T12:11:33Z",
            "intentionally_left_blank": false,
            "itemgroups": [
                {
                    "id": "V5C00000000B007",
                    "itemgroup_name": "creation_criteria",
                    "itemgroup_sequence": 1,
                    "itemgroup_external_id": "creation_criteria",
                    "items": [
                        {
                            "id": "V5D00000000B031",
                            "item_name": "subject_date_of_birth",
                            "value": "17-Jun-1978",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B032",
                            "item_name": "subject_gender",
                            "value": "F",
                            "intentionally_left_blank": false,
                            "externally_owned": true,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B033",
                            "item_name": "subject_initials",
                            "value": "QGT",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B034",
                            "item_name": "subject_race",
                            "value": "Caucasian",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B035",
                            "item_name": "weight",
                            "value": "150.2",
                            "unit_value": "lbs",
                            "translated_value": "68.129574",
                            "translated_unit_value": "kg",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        }
                    ]
                }
            ]
        },
        {
            "id": "OPT00000001M003",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "screening",
            "eventgroup_sequence": 1,
            "event_name": "screening_visit",
            "event_sequence": 1,
            "event_externalid": "screening_visit",
            "form_name": "exclusion_criteria",
            "form_sequence": 1,
            "form_status": "submitted__v",
            "locked": false,
            "frozen": false,
            "first_submit_date": "2023-07-28T12:11:33Z",
            "last_submit_date": "2023-07-28T12:11:33Z",
            "intentionally_left_blank": false,
            "itemgroups": [
                {
                    "id": "V5C00000000B008",
                    "itemgroup_name": "exclusion_criteria",
                    "itemgroup_sequence": 1,
                    "itemgroup_externalid": "exclusion_criteria",
                    "items": [
                        {
                            "id": "V5D00000000B017",
                            "item_name": "exclusion_hypersensitivity",
                            "value": "N",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B018",
                            "item_name": "exclusion_study_calendar",
                            "value": "N",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B019",
                            "item_name": "exclusion_pregnant_or_nursing",
                            "value": "N",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B020",
                            "item_name": "exclusion_chronic_medical_condition",
                            "value": "N"
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        }
                    ]
                }
            ]
        },
        {
            "id": "OPT00000001M004",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "screening",
            "eventgroup_sequence": 1,
            "event_name": "screening_visit",
            "event_sequence": 1,
            "event_externalid": "screening_visit",
            "form_name": "inclusion_criteria",
            "form_sequence": 1,
            "form_status": "submitted__v",
            "locked": false,
            "frozen": false,
            "first_submit_date": "2023-08-02T17:38:15Z",
            "last_submit_date": "2023-08-02T17:38:15Z",
            "intentionally_left_blank": false,
            "itemgroups": [
                {
                    "id": "V5C00000000B009",
                    "itemgroup_name": "inclusion_criteria",
                    "itemgroup_sequence": 1,
                    "itemgroup_externalid": "inclusion_criteria",
                    "items": [
                        {
                            "id": "V5D00000000B021",
                            "item_name": "inclusion_negative_pregnancy_test",
                            "value": "Y",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B022",
                            "item_name": "inclusion_normal_healthy",
                            "value": "Y",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B023",
                            "item_name": "inclusion_age_18",
                            "value": "Y",
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B024",
                            "item_name": "inclusion_informed_consent",
                            "value": "Y".
                            "intentionally_left_blank": false,
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        }
                    ]
                }
            ]
        },
        {
            "id": "OPT00000001M005",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "screening",
            "eventgroup_sequence": 1,
            "event_name": "screening_visit",
            "event_sequence": 1,
            "event_externalid": "screening_visit",
            "form_name": "inclusion_criteria",
            "form_sequence": 1,
            "form_status": "submitted__v",
            "locked": false,
            "frozen": false,
            "first_submit_date": "2023-07-11T19:38:15Z",
            "last_submit_date": "2023-07-11T19:38:33Z",
            "intentionally_left_blank": true,
            "intentionally_left_blank_reason": "Did not complete",
            "itemgroups": [
                {
                    "id": "V5C00000000B010",
                    "itemgroup_name": "pk_1",
                    "itemgroup_sequence": 1,
                    "itemgroup_externalid": "pk_1",
                    "items": [
                        {
                            "id": "V5D00000000B045",
                            "item_name": "pk_date",
                            "value": null,
                            "intentionally_left_blank": true,
                            "intentionally_left_blank_reason": "Did not complete",
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B046",
                            "item_name": "pk_result",
                            "value": null,
                            "intentionally_left_blank": true,
                            "intentionally_left_blank_reason": "Did not complete",
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        },
                        {
                            "id": "V5D00000000B047",
                            "item_name": "pk_not_done_reason",
                            "value": null,
                            "intentionally_left_blank": true,
                            "intentionally_left_blank_reason": "Did not complete",
                            "externally_owned": false,
                            "frozen": false,
                            "locked": false
                        }
                    ]
                }
            ]
        }
    ]
}

Notes

Endpoint

GET /api/{version}/app/cdm/forms

Required Permissions

The following permissions are required to use the Retrieve Forms API:

The CDMS API Read Only and CDMS API Read Write roles grant these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Query String Parameters

Name Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country Name of the Study Country for the site of the Subject
site Name of the Site for the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject Name (ID/number) of the Subject
eventgroup_name Study design name for an Event Group
eventgroup_sequence Optional Specific sequence to filter the Event Group on. If omitted, 1 is assumed.
event_name Study design name for an Event (of that Event Group)
form_name Optional Study design name of a Form (in the Event) to filter on
form_sequence Optional Specific sequence to filter on, that is, form of a specific sequence. If omitted, 1 is assumed.

This API supports pagination. By default, the page limit is set to 1000 records. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer or zero). If omitted, the default is 0.

For example, if the limit is set to 100, and there are 150 possible records, an offset of 0 returns records 0 through 99 (zero based). Then, offset of 100 would return records 100 through 149. More information on pagination is in the section Pagination

Response Details

On SUCCESS, Vault returns a list of Forms within the Subject / Event provided, with the following information:

Array Name Description
forms id Vault internal ID for the Form (will never change)
forms study_country Name of the Study Country for the site of the Subject
forms site Name of the Site for the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
forms subject Name (ID/number) of the Subject
forms eventgroup_name Study design name for the Event Group
forms eventgroup_sequence Sequence of the Event Group of the Event. If repeating Event Group the value increments starting at 1, 2.... If it does not repeat, then 1 is always returned
forms event_name Study design name for a the Event
forms event_sequence Currently, always a 1. If the Event within a repeating Event Group the sequence increments at the evengroup_sequence level
forms event_date Event date of the Event. yyyy-MM-dd format is returned.
forms form_name Study design name for a Form in the Event (entry per form)
forms form_sequence If the Form repeats per study design, these increment starting at 1, 2.... If it does repeat, 1 is always returned.
forms form_status The status (picklist name) of that form (e.g. blank__v, submitted__v, etc. See the table below for possible form statuses.
forms locked Whether the form is locked (true/false). Locked Forms cannot be updated, nor the queries on them
forms frozen Whether the form is locked (true/false). Frozen Forms cannot be updated (data wise), queries can be updated / added.
forms first_submit_date The first time the form was submitted.
forms last_submit_date The most recent time the form was submitted.
forms intentionally_left_blank Whether the Form has been marked intentionally left blank (ILB) by a site user. (true/false)
forms intentionally_left_blank_reason When intentionally_left_blank is true for the Form, the reason. Otherwise, omitted.
forms/itemgroups id Vault internal ID for the Item Group (will never change)
forms/itemgroups itemgroup_name Study design name for an Item Group in the Form
forms/itemgroups itemgroup_sequence If the Item Group repeats per study design (within the Form), these increment starting at 1, 2.... If it does repeat, 1 is always returned.
forms/itemgroups itemgroup_external_id Another study design reference/name for the Item Group. This value is usually the same as the name.
forms/itemgroups/items id Vault internal ID for the Item (will never change)
forms/itemgroups/items item_name Study design name for the Item
forms/itemgroups/items value The value for that Item. The value returned will differ by the type of the Item, study design wise (e.g. Date, DateTime, Time, Check Box, Codelist, etc., see the table below)
forms/itemgroups/items unit_value Only applies when the Item type is Unit Codelist. This is the unit selected to pair with the value entered by the end user. If the Item is not a Unit Codelist, this line is omitted.
forms/itemgroups/items translated_value Only applies when the Item type is Unit Codelist. The user value is calculated to the standard unit defined for the Item. If the user selects the standard unit, the value here will be the same as value. If the Item is not a Unit Codelist, this line is omitted.
forms/itemgroups/items translated_unit_value Only applies when the Item type is Unit Codelist. The standard unit for the Item, as defined in the study. If the user selects the standard unit, the value here will be the same as unit_value. If the Item is not a Unit Codelist, this line is omitted.
forms/itemgroups/items lab_modifier Only applies when the Item type is Unit Codelist, and the Item has a value for Lab Modifier. Example: A lab value is 'Less than 0.7', results in value: 1, and the coded value for 'Less than' as setup in the study design. If the Item is not a Unit Codelist or the Lab Modifier is empty / not set, this line is omitted.
forms/itemgroups/items intentionally_left_blank Whether the Item has been marked intentionally left blank (ILB) by a site user. (true/false)
forms/itemgroups/items intentionally_left_blank_reason When intentionally_left_blank is true for the Item, the reason. Otherwise, omitted.
forms/itemgroups/items externally_owned Whether the Item is owned by another system. When true, the Item value it not editable by site users, even if the Item Definition is set for editable.
forms/itemgroups/items frozen Whether the Item is currently frozen or not. An Item can be frozen without freezing the entire Form. Frozen does not allow data changes, but does allow Query activity.
forms/itemgroups/items locked Whether the Item is currently locked or not. An Item can be locked without freezing the entire Form. Locked does not allow data changes, nor Query activity.

Form Statuses

Status API Value Notes
Blank blank__v The form is not yet visited (no data points / items), or is visited but all fields are their initial blank status. The form can also take on this status after a reset action
In Progress in_progress__v At least one data point (item) on the form has its first value.
Submitted submitted__v The form is in submitted/completed state. No updates (UI or API) can occur until the form is opened for edit. NOTE: A form can be in submitted status and be additionally marked Intentionally Left Blank. (i.e., reasons for not having the data)
In Progress Post Submit in_progress_post_submit__v Like in_progress__v, but the form has been submitted (then reopened) at least once.

Item Value Return by Item Type

Item Type State/Value Example Return
Checkbox (never been checked) "value": null
Checkbox Checked "value": "true"
Checkbox Unchecked (but at one time checked) "value": "false"
Codelist (never been selected) "value": null
Codelist Codelist code value "value": "Y"
(e.g. 'Yes' = 'Y' for codelist)
Codelist Codelist saved non-empty, now empty "value": null
Date (never been set) "value": null
Date Full date set "value": "05-Jun-2022"
(The study date format is returned, not ISO)
Date (value set, then later unset) "value": null
Date Partial date saved (day and month unknown) "value": "UN-UNK-2022"

(assuming dd-MMM-yyyy study date format)
DateTime (never been set) "value": null
DateTime Full date time set "value": "05-Jun-2022 13:30"
(The study date format is returned, not ISO)
DateTime (value set, then later unset) "value": null
DateTime Partial date saved (day and time unknown) "value": "UN-Jun-2022 UN:UN"
Assuming dd-MMM-yyyy study date format, day and time unknown
URL Field (never been set) "value": null
URL Field Set with a value "value": "https://www.google.com"
URL Field (value set, then later unset) "value": null
Unit Codelist (never been set) "value": null,
"unit_value": null,
"translated_value": null,
"translated_unit_value": null
Unit Codelist Set with value and unit "value": "150.2",
"unit_value": "lbs",
"translated_value": "68.129574",
"translated_unit_value": "kg"
Unit Codelist Set with value and unit, plus lab modifier set "value": "0.001"
"unit_value": "mg",
"translated_value": "1.0",
"translated_unit_value": "g",
"lab_modifier": "<"
Unit Codelist (value set, then later unset) "value": null,
"unit_value": null,
"translated_value": null,
"translated_unit_value": null
Numeric (Integer or Decimal) (never been set) "value": null
Numeric (Integer or Decimal) Set with a value "value": "32.45"
Numeric (Integer or Decimal) (value set, then later unset) "value": null
Text (never been set) "value": null
Text Set with a value "value": "This is my text set in the field on screen"
Text Set with a value - comments field with return character (use \n for breaks) "value": "Here is my long text with a carriage return \nhere \nand here\nand the end of the text is here"
Text (value set, then later unset) "value": null

Combination Update Form Data

Request - Set data with a reopen and submit at the end

curl -L -X POST 'https://my-vault.veevavault.com/api{version}cdm/forms/actions/setdata' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{

    "study_name": "ABC-XYZ-001_DEV1",
    "reopen": true,
    "submit": true,
    "change_reason": "Integration Update",
    "form": {
        "study_country": "United States",
        "site": "001",
        "subject": "101-103",
        "eventgroup_name": "egSCR",
        "eventgroup_sequence": 1,
        "event_name": "evSCR",
        "form_name": "DM",
        "form_sequence": 1,
        "itemgroups": [
            {
                "itemgroup_name": "igBASE_DM",
                "itemgroup_sequence": 1,
                "items": [
                    {
                        "item_name": "BIRTHYR",
                        "value": "1976"
                    },
                    {
                        "item_name": "SEX",
                        "value": "M"
                    }
                ]
            }
        ]
    }
}'

Response - Set data with a reopen and submit at the end

{
    "responseStatus": "SUCCESS",
    "reopen": true,
    "submit": true,
    "change_reason": "Integration Update",
    "externally_owned": true,
    "form": {
        "id": "OPT000000000507",
        "form_status": "submitted__v",
        "study_country": "United States",
        "site": "001",
        "subject": "101-103",
        "eventgroup_name": "egSCR",
        "eventgroup_sequence": 1,
        "event_name": "evSCR",
        "event_sequence": 1,
        "form_name": "DM",
        "form_sequence": 1,
        "itemgroups": [
            {
                "responseStatus": "SUCCESS",
                "id": "V54000000006002",
                "itemgroup_name": "igBASE_DM",
                "itemgroup_sequence": 1,
                "items": [
                    {
                        "responseStatus": "SUCCESS",
                        "id": "V55000000006005",
                        "item_name": "BIRTHYR",
                        "value": "1976"
                    },
                    {
                        "responseStatus": "SUCCESS",
                        "id": "V55000000006006",
                        "item_name": "SEX",
                        "value": "M"
                    }
                ]
            }
        ]
    }
}

Request - lacking sequence defaults, change reason (defaults used)

curl -L -X POST 'https://my-vault.veevavault.com/api{version}cdm/forms/actions/setdata' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABC-XYZ-001_DEV1",
    "reopen": true,
    "submit": true,
    "form": {
        "study_country": "United States",
        "site": "001",
        "subject": "101-103",
        "eventgroup_name": "egSCR",
        "event_name": "evSCR",
        "form_name": "DM",
        "itemgroups": [
            {
                "itemgroup_name": "igBASE_DM",
                "items": [
                    {
                        "item_name": "BIRTHYR",
                        "value": "1976"
                    },
                    {
                        "item_name": "SEX",
                        "value": "M"
                    }
                ]
            }
        ]
    }
}

Response - lacking sequence defaults, change reason (defaults used)

{
    "responseStatus": "SUCCESS",
    "reopen": true,
    "submit": true,
    "change_reason": "Action performed via the API",
    "externally_owned": true,
    "form": {
        "id": "OPT000000000507",
        "form_status": "submitted__v",
        "study_country": "United States",
        "site": "001",
        "subject": "101-103",
        "eventgroup_name": "egSCR",
        "eventgroup_sequence": 1,
        "event_name": "evSCR",
        "event_sequence": 1,
        "form_name": "DM",
        "form_sequence": 1,
        "itemgroups": [
            {
                "responseStatus": "SUCCESS",
                "id": "V54000000006002",
                "itemgroup_name": "igBASE_DM",
                "itemgroup_sequence": 1,
                "items": [
                    {
                        "responseStatus": "SUCCESS",
                        "id": "V55000000006005",
                        "item_name": "BIRTHYR",
                        "value": "1976"
                    },
                    {
                        "responseStatus": "SUCCESS",
                        "id": "V55000000006006",
                        "item_name": "SEX",
                        "value": "M"
                    }
                ]
            }
        ]
    }
}

Request - Setting values for one of each type of item

curl -L -X POST 'https://my-vault.veevavault.com/api{version}cdm/forms/actions/setdata' \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{

    "study_name": "ABC-XYZ-001_DEV1",
    "reopen": true,
    "submit": true,
    "form": {
        "study_country": "United States",
        "site": "101",
        "subject": "101-101",
        "eventgroup_name": "egSCR",
        "eventgroup_sequence": 1,
        "event_name": "evSCR",
        "form_name": "ONE_EACH_FORM",
        "form_sequence": 1,
        "itemgroups": [
            {
                "itemgroup_name": "igONE_EACH_TYPE",
                "itemgroup_sequence": 1,
                "items": [
                  {
                    "item_name": "CB",
                    "value": "true"
                  },
                  {
                    "item_name": "CL",
                    "value": "Y"
                  },
                  {
                    "item_name": "DATEONLY",
                    "value": "2022-06-01"
                  },
                  {
                    "item_name": "DATEONLY_UNKS",
                    "value": "2022-UN-UN"
                  },
                  {
                    "item_name": "DATEANDTIME",
                    "value": "2022-06-01T12:30Z"
                  },
                  {
                    "item_name": "DT_WITH_UNKS",
                    "value": "2022-06-UNTUN:UNZ"
                  },
                  {
                    "item_name": "INTFIELD",
                    "value": "3"
                  },
                  {
                    "item_name": "DECIMAL",
                    "value": "5.2"
                  },
                  {
                    "item_name": "UCLFIELD",
                    "value": "2.1",
                    "unit_value": "double_std"
                  },
                  {
                    "item_name": "URL_FIELD",
                    "value": "https://www.google.com"
                  },
                  {
                    "item_name": "SHORTTXT",
                    "value": "Some text short"
                  },
                  {
                    "item_name": "LONGTXT",
                    "value": "Some text in a long text field \n with a line break in the payload"
                  }
                  {
                    "item_name": "LINK_TO_OTHER_FORM",
                    "value": "",
                    "item_to_form_link": {
                        "eventgroup_name": "egSCR",
                        "event_name": "evSCR",
                        "form_name": "MH",
                        "form_sequence": 3
                  }
                 }
                ]
            }
        ]
    }
}'

Response - Setting values for one of each type of item

{
    "study_name": "ABC-XYZ-001_DEV1",
    "reopen": true,
    "submit": true,
    "change_reason": "Action performed via the API",
    "externally_owned": true,
    "form": {
        "id": "OPT000000000507",
        "form_status": "submitted__v",
        "study_country": "United States",
        "site": "101",
        "subject": "101-101",
        "eventgroup_name": "egSCR",
        "eventgroup_sequence": 1,
        "event_name": "evSCR",
        "form_name": "ONE_EACH_FORM",
        "form_sequence": 1,
        "itemgroups": [
            {
                "responseStatus": "SUCCESS",
                "id": "V54000000006002",
                "itemgroup_name": "igONE_EACH_TYPE",
                "itemgroup_sequence": 1,
                "items": [
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "CB",
                    "value": "true"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "CL",
                    "value": "Y"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "DATEONLY",
                    "value": "2022-06-01"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "DATEONLY_UNKS",
                    "value": "2022-UN-UN"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "DATEANDTIME",
                    "value": "2022-06-01T12:30Z"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "DT_WITH_UNKS",
                    "value": "2022-06-UNTUN:UNZ"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "INTFIELD",
                    "value": "3"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "DECIMAL",
                    "value": "5.2"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "UCLFIELD",
                    "value": "2.1",
                    "unit_value": "double_std"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "URL_FIELD",
                    "value": "https://www.google.com"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "SHORTTXT",
                    "value": "Some text short"
                  },
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "LONGTXT",
                    "value": "Some text in a long text field \n with a line break in the payload"
                  }
                  {
                    "responseStatus": "SUCCESS",
                    "id": "VB67000000006002",
                    "item_name": "LINK_TO_OTHER_FORM",
                    "value": "",
                    "item_to_form_link": {
                        "eventgroup_name": "egSCR",
                        "event_name": "evSCR",
                        "form_name": "MH",
                        "form_sequence": 3
                  }
                 }
                ]
            }
        ]
    }
}

Request - Failure at the item level, and bubble up to higher levels. The form was opened, and left open

curl -L -X POST 'https://my-vault.veevavault.com/api{version}cdm/forms/actions/setdata' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '
{
    "study_name": "ABC-XYZ-001_DEV1",
    "reopen": true,
    "submit": true,
    "form": {
        "study_country": "United States",
        "site": "001",
        "subject": "101-103",
        "eventgroup_name": "egSCR",
        "event_name": "evSCR",
        "form_name": "DM",
        "itemgroups": [
            {
                "itemgroup_name": "igBASE_DM",
                "items": [
                    {
                        "item_name": "BIRTHYR",
                        "value": "1976"
                    },
                    {
                        "item_name": "SEX",
                        "value": "MM"
                    }
                ]
            }
        ]
    }
}

Response - Failure at the item level, and bubble up to higher levels. The form was opened, and left open

{
    "responseStatus": "FAILURE",
    "errorMessage": "One or more [Item] updates failed",
    "reopen": true,
    "submit": true,
    "change_reason": "Action performed via the API",
    "externally_owned": true,
    "form": {
        "id": "OPT000000000507",
        "form_status": "in_progress_post_submit__v",
        "study_country": "United States",
        "site": "001",
        "subject": "101-103",
        "eventgroup_name": "egSCR",
        "eventgroup_sequence": 1,
        "event_name": "evSCR",
        "event_sequence": 1,
        "form_name": "DM",
        "form_sequence": 1,
        "itemgroups": [
            {
                "responseStatus": "FAILURE",
                "errorMessage": "One or more [Item] updates failed",
                "itemgroup_name": "igBASE_DM",
                "itemgroup_sequence": 1,
                "items": [
                    {
                        "responseStatus": "SUCCESS",
                        "id": "V55000000006005",
                        "item_name": "BIRTHYR",
                        "value": "1976"
                    },
                    {
                        "responseStatus": "FAILURE",
                        "errorMessage": "[Codelist Item Definition] with name [MM] not found",
                        "item_name": "SEX",
                        "value": "MM"
                    }
                ]
            }
        ]
    }
}

Request - Form is frozen (no actions happen), top level reported

curl -L -X POST 'https://my-vault.veevavault.com/api{version}cdm/forms/actions/setdata' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '
{
    "study_name": "ABC-XYZ-001_DEV1",
    "reopen": true,
    "submit": true,
    "form": {
        "study_country": "United States",
        "site": "001",
        "subject": "101-103",
        "eventgroup_name": "egSCR",
        "event_name": "evSCR",
        "form_name": "DM",
        "itemgroups": [
            {
                "itemgroup_name": "igBASE_DM",
                "items": [
                    {
                        "item_name": "BIRTHYR",
                        "value": "1976"
                    },
                    {
                        "item_name": "SEX",
                        "value": "M"
                    }
                ]
            }
        ]
    }
}

Response - Form is frozen (no actions happen), top level reported

{
    "responseStatus": "FAILURE",
    "errorMessage": "Form is frozen"
}

This endpoint is a singular call that can perform many actions at once, and conditionally peform actions should the state of the Subject data require such.

Endpoint

POST /api/{version}/app/cdm/forms/actions/setdata

Required Permissions

The following permissions are required to use the Combination Update Form Data API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
reopen Optional Whether to open the Form, if currently in submitted status. If omitted, true is assumed.
submit Optional Whether to submit the Form, as last step. If omitted, false is assumed.
change_reason Optional When omitted a default reason will be set, if a change reason required.
externally_owned Optional When omitted true is used, i.e. the site user cannot then further edit the value. Pass a false to re-enable the ability for a user to edit a previously read only Item.
study_country Name of the Study Country of the Subject
site Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject Name of the Subject (ID / number)
eventgroup_name Study design name of the Event Group
eventgroup_sequence Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per study design.
event_name Study design name of the Event
form_name Study design name of the Form
form_sequence Optional Specific form sequence (i.e., repeating form area) to perform on. If omitted, 1 is assumed.
itemgroup_name items_groups Study design name of the Item Group to be added within the Form
itemgroup_sequence items_groups The specific Item Group sequence where the Item resides, Required even if a non-repeating Item Group.
item_name items_groups/items Study design name for the Item
value items_groups/items The value to set. See the table below for notes on Item types and value.
unit_value items_groups/items Required when the Item is a unit codelist type. Omit otherwise. The value must be the unit codelist code, not label.

Setting Data by Item Type

Type Example Notes
Checkbox "value": "true" i.e., checked
Checkbox "value": "false" i.e., unchecked
Checkbox "value": "" Same effect as false - Suggest use true / false
Checkbox (any other value) Error returned
Codelist "value": "Y" e.g. "Yes" = "Y" in codelist definition
Codelist "value": "" Empty / unset the selection
Codelist (any other value, i.e., not a codelist code) Error returned
URL "value": "https://www.google.com" Set the value to a URL, on screen user can click to navigate to the URL, in another tab
URL "value": "" Empty / unset the value
URL (any value that does not start http or ftp) Error returned
Text Field "value": "Here is my text in the field" Set a value
Text Field "value": "" Empty / unset the value
Text Field (over max length) Error returned
Numeric "value": "3" E.g., a field with precision = 0 (no decimal portion)
Numeric "value": "13.4" E.g., a decimal portion allowed field (precision > 0)
Numeric "value": "" Empty / unset the value
Numeric (not numeric or violates length or precision) Error returned
Date "value": "2022-06-01" E.g., to set June 1st, 2022
Date "value": "" Empty / unset the value
Date "value": "2022-UN-UN" E.g., when the field allows unknowns in month and/or day. UN must be used in the appropriate portion
Date (bad date, not of proper format, yyyy-MM-dd) Error returned
DateTime "value": "2022-06-01T12:30:00Z" Set the datetime in full, this will take on the 'on screen' value (not the normalized)
DateTime "value": "" Empty / unset the value
DateTime (bad date, not of proper format, yyyy-MM-ddTHH:mmZ) Error returned
Time "value": "12:30" Set the time value
Time "value": "" Empty / unset the value
Time (bad date, not of proper format, HH:mm) Error returned
Unit Codelist "value": "62.2", "unit_value": "in" E.g., 'in' is a valid code in the unit codelist definition.
Unit Codelist "value": "" , "unit_value": "" Empty / unset the value
Unit Codelist "value": "62.2" Error returned (must have both)
Unit Codelist (any violation of length, precision, or invalid unit code) Error returned
Item to Form Link (example below and to the right) IMPORTANT: The value portion for the Item must be included, but with no value for this Item Definition type. Only the information about the remote Form being linked to by the Item is indicated

(example for Item to Form Link type of Item)

{ "item_name": "AE_LINK_TO_MH", "value": "", "item_to_form_link": { "eventgroup_name": "egSCR", "event_name": "evSCR", "form_name": "MH", "form_sequence": 3 } } :

Create Forms

Request - adding one new form

curl -L -X POST 'https://my-vault.veevavault.com/api/{version}cdm/forms' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egLOGS",
            "event_name": "evLOGS",
            "form_name": "AE"
        }
    ]
}'

Response - adding one new form

{
    "responseStatus": "SUCCESS",
    "forms": [
        {
        "responseStatus": "SUCCESS",
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "egLOGS",
        "eventgroup_sequence": 1,
        "event_name": "evLOGS",
        "event_sequence": 1,
        "form_name": "AE",
        "form_sequence": 1
        }
    ]
}

Request - adding multiple forms

curl -L -X POST 'https://my-vault.veevavault.com/api/{version}cdm/forms' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egLOGS",
            "event_name": "evLOGS",
            "form_name": "AE"
        },
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egLOGS",
            "event_name": "evLOGS",
            "form_name": "AE"
        }
    ]
}'

Response - adding multiple forms

{
    "responseStatus": "SUCCESS",
    "forms": [
        {
        "responseStatus": "SUCCESS",
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "egLOGS",
        "eventgroup_sequence": 1,
        "event_name": "evLOGS",
        "event_sequence": 1,
        "form_name": "AE",
        "form_sequence": 2
        },
        {
        "responseStatus": "SUCCESS",
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "egLOGS",
        "eventgroup_sequence": 1,
        "event_name": "evLOGS",
        "event_sequence": 1,
        "form_name": "AE",
        "form_sequence": 3
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/forms

Required Permissions

The following permissions are required to use the Create Forms API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country forms Name of the Study Country of the Subject
site forms Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject forms Name of the Subject (ID / number)
eventgroup_name forms Study design name of the Event Group
eventgroup_sequence forms Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per study design.
event_name forms Study design name of the Event where the Form resides
form_name forms Study design name of the Form to add

Upsert Forms

Request - adding one new form

curl -L -X POST 'https://my-vault.veevavault.com/api/{version}cdm/forms' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egLOGS",
            "event_name": "evLOGS",
            "form_name": "AE",
            "form_sequence": 3
        }
    ]
}'

Response - adding one new form

{
    "responseStatus": "SUCCESS",
    "forms": [
        {
        "responseStatus": "SUCCESS:CREATED",
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "egLOGS",
        "eventgroup_sequence": 1,
        "event_name": "evLOGS",
        "event_sequence": 1,
        "form_name": "AE",
        "form_sequence": 3
        }
    ]
}

Request - adding multiple forms

curl -L -X POST 'https://my-vault.veevavault.com/api/{version}cdm/forms' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egLOGS",
            "event_name": "evLOGS",
            "form_name": "AE",
            "form_sequence": 4
        },
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egLOGS",
            "event_name": "evLOGS",
            "form_name": "AE",
            "form_sequence": 5
        }
    ]
}'

Response - adding multiple forms

{
    "responseStatus": "SUCCESS",
    "forms": [
        {
        "responseStatus": "SUCCESS:UPDATED",
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "egLOGS",
        "eventgroup_sequence": 1,
        "event_name": "evLOGS",
        "event_sequence": 1,
        "form_name": "AE",
        "form_sequence": 4
        },
        {
        "responseStatus": "SUCCESS:CREATED",
        "study_country": "United States",
        "site": "101",
        "subject": "101-001",
        "eventgroup_name": "egLOGS",
        "eventgroup_sequence": 1,
        "event_name": "evLOGS",
        "event_sequence": 1,
        "form_name": "AE",
        "form_sequence": 5
        }
    ]
}

Notes

Endpoint

PUT /api/{version}/app/cdm/forms

Required Permissions

The following permissions are required to use the Upsert Forms API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country forms Name of the Study Country of the Subject
site forms Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject forms Name of the Subject (ID / number)
eventgroup_name forms Study design name of the Event Group
eventgroup_sequence forms Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per study design.
event_name forms Study design name of the Event where the Form resides
form_name forms Study design name of the Form to add
form_sequence forms Required for the PUT version of this endpoint. The sequence of the Form to act on - created if does not exist, skipped if exists.

Create Item Groups

Request - Add one item group, where form already has 3

curl -L -X POST 'https://my-vault.veevavault.com/api/{version}cdm/itemgroups' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "itemgroups": [
            {
                "study_country": "United States",
                "site": "102",
                "subject": "102-001",
                "eventgroup_name": "egSCR",
                "event_name": "evSCR",
                "form_name": "IE",
                "form_sequence": 1,
                "itemgroup_name": "ig-IE2"
            }
    ]
}'

Response - Add one item group, where form already has 3

{
    "responseStatus": "SUCCESS",
    "itemgroups": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "102",
            "subject": "102-001",
            "eventgroup_name": "egSCR",
            "eventgroup_sequence": 1,
            "event_name": "evSCR",
            "event_sequence": 1,
            "form_name": "IE",
            "form_sequence": 1,
            "itemgroup_name": "ig-IE2",
            "itemgroup_sequence": 4
        }
    ]
}

Request - Add two item groups, where form already has 4

curl -L -X POST 'https://my-vault.veevavault.com/api/{version}cdm/itemgroups' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "itemgroups": [
            {
                "study_country": "United States",
                "site": "102",
                "subject": "102-001",
                "eventgroup_name": "egSCR",
                "event_name": "evSCR",
                "form_name": "IE",
                "form_sequence": 1,
                "itemgroup_name": "ig-IE2"
            },
            {
                "study_country": "United States",
                "site": "102",
                "subject": "102-001",
                "eventgroup_name": "egSCR",
                "event_name": "evSCR",
                "form_name": "IE",
                "form_sequence": 1,
                "itemgroup_name": "ig-IE2"
            }
    ]
}'

Response - Add two item groups, where form already has 4

{
    "responseStatus": "SUCCESS",
    "itemgroups": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "102",
            "subject": "102-001",
            "eventgroup_name": "egSCR",
            "eventgroup_sequence": 1,
            "event_name": "evSCR",
            "event_sequence": 1,
            "form_name": "IE",
            "form_sequence": 1,
            "itemgroup_name": "ig-IE2",
            "itemgroup_sequence": 5
        },
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "102",
            "subject": "102-001",
            "eventgroup_name": "egSCR",
            "eventgroup_sequence": 1,
            "event_name": "evSCR",
            "event_sequence": 1,
            "form_name": "IE",
            "form_sequence": 1,
            "itemgroup_name": "ig-IE2",
            "itemgroup_sequence": 6
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/itemgroups

Required Permissions

The following permissions are required to use the Create Item Groups API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country itemgroups Name of the Study Country of the Subject
site itemgroups Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject itemgroups Name of the Subject (ID / number)
eventgroup_name itemgroups Study design name of the Event Group
eventgroup_sequence itemgroups Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per study design.
event_name itemgroups Study design name of the Event
form_name itemgroups Study design name of the Form
form_sequence itemgroups Optional Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
itemgroup_name itemgroups Study design name of the Item Group to be added within the Form

Upsert Item Groups

Request - Add 2nd, 3rd, where 2nd already exists

curl -L -X PUT 'https://my-vault.veevavault.com/api/v24.2/cdm/itemgroups' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "itemgroups": [
            {
                "study_country": "United States",
                "site": "102",
                "subject": "SCR-0002",
                "eventgroup_name": "egSCR",
                "event_name": "evSCR",
                "form_name": "IE",
                "form_sequence": 1,
                "itemgroup_name": "ig-IE2",
                "itemgroup_sequence": 2
            },
            {
                "study_country": "United States",
                "site": "102",
                "subject": "SCR-0002",
                "eventgroup_name": "egSCR",
                "event_name": "evSCR",
                "form_name": "IE",
                "form_sequence": 1,
                "itemgroup_name": "ig-IE2",
                "itemgroup_sequence": 3
            }
    ]
}'

Response - Add 2nd, 3rd, where 2nd already exists

{
    "responseStatus": "SUCCESS",
    "itemgroups": [
        {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "102",
            "subject": "SCR-0002",
            "eventgroup_name": "egSCR",
            "eventgroup_sequence": 1,
            "event_name": "evSCR",
            "event_sequence": 1,
            "form_name": "IE",
            "form_sequence": 1,
            "itemgroup_name": "ig-IE2",
            "itemgroup_sequence": 2
        },
        {
            "responseStatus": "SUCCESS:CREATED",
            "study_country": "United States",
            "site": "102",
            "subject": "SCR-0002",
            "eventgroup_name": "egSCR",
            "eventgroup_sequence": 1,
            "event_name": "evSCR",
            "event_sequence": 1,
            "form_name": "IE",
            "form_sequence": 1,
            "itemgroup_name": "ig-IE2",
            "itemgroup_sequence": 3
        }
    ]
}

Request - Add 3rd item group, where form currently has 1 (2 added, GAPS FILLED)

curl -L -X PUT 'https://my-vault.veevavault.com/api/v24.2/cdm/itemgroups' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "itemgroups": [
            {
                "study_country": "United States",
                "site": "102",
                "subject": "SCR-0002",
                "eventgroup_name": "egSCR",
                "event_name": "evSCR",
                "form_name": "IE",
                "form_sequence": 1,
                "itemgroup_name": "ig-IE2",
                "itemgroup_sequence": 3
            }

    ]
}'

Response - Add 3rd item group, where form currently has 1 (2 added, GAPS FILLED)

{
    "responseStatus": "SUCCESS",
    "itemgroups": [
        {
            "responseStatus": "SUCCESS:CREATED",
            "study_country": "United States",
            "site": "102",
            "subject": "SCR-0002",
            "eventgroup_name": "egSCR",
            "eventgroup_sequence": 1,
            "event_name": "evSCR",
            "event_sequence": 1,
            "form_name": "IE",
            "form_sequence": 1,
            "itemgroup_name": "ig-IE2",
            "itemgroup_sequence": 3
        }
    ]
}

Notes

Endpoint

PUT /api/{version}/app/cdm/itemgroups

Required Permissions

The following permissions are required to use the Upsert Item Groups API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country itemgroups Name of the Study Country of the Subject
site itemgroups Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject itemgroups Name of the Subject (ID / number)
eventgroup_name itemgroups Study design name of the Event Group
eventgroup_sequence itemgroups Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per study design.
event_name itemgroups Study design name of the Event
form_name itemgroups Study design name of the Form
form_sequence itemgroups Optional Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
itemgroup_name itemgroups Study design name of the Item Group to be added within the Form
itemgroup_sequence itemgroups Required, the specific sequence to have added. If the item group at that sequence already exists, the action is skipped

Set Form Data (Items)

Request - Setting values for one of each type of item

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/items \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
            {
                "study_country": "United States"
                "site": "101",
                "subject": "SCR-0001",
                "eventgroup_name": "egUNS",
                "eventgroup_sequence": 3,
                "event_name": "evUNS",
                "form_name": "OE",
                "form_sequence": 1,
                "items": [
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "CB",
                    "value": "true"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "CL",
                    "value": "Y"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DATEONLY",
                    "value": "2022-06-01"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DATEONLY_UNKS",
                    "value": "2022-UN-UN"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DATEANDTIME",
                    "value": "2022-06-01T12:30Z"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DT_WITH_UNKS",
                    "value": "2022-06-UNTUN:UNZ"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "INTFIELD",
                    "value": "3"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DECIMAL",
                    "value": "5.2"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "UCLFIELD",
                    "value": "2.1",
                    "unit_value": "double_std"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "URL_FIELD",
                    "value": "https://www.google.com"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "SHORTTXT",
                    "value": "Some text short"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "LONGTXT",
                    "value": "Some text in a long text field \n with a line break in the payload"
                  }
                ]
            }
        ]
}'

Response - Setting values for one of each type of item

{
    "responseStatus": "SUCCESS",
    "items": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "CB",
            "value": "true",
            "change_reason": "Action performed via the API",
            "externally_owned": true
        },
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "CL",
            "value": "Y",
            "change_reason": "Action performed via the API",
            "externally_owned": true
        },
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DATEONLY",
            "value": "2022-06-01",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DATEONLY_UNKS",
            "value": "2022-UN-UN",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DATEANDTIME",
            "value": "2022-06-01T12:30Z",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DT_WITH_UNKS",
            "value": "2022-06-UNTUN:UNZ",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "INTFIELD",
            "value": "3",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DECIMAL",
            "value": "5.2",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "UCLFIELD",
            "value": "2.1",
            "unit_value": "double_std",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "URL_FIELD",
            "value": "https://www.google.com",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "SHORTTXT",
            "value": "Some text short",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "LONGTXT",
            "value": "Some text in a long text field \n with a line break in the payload",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/items

Required Permissions

The following permissions are required to use the Set Form Data API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country forms Name of the Study Country of the Subject
site forms Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject forms Name of the Subject (ID / number)
eventgroup_name forms Study design name of the Event Group
eventgroup_sequence forms Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per study design.
event_name forms Study design name of the Event
form_name forms Study design name of the Form
form_sequence forms Optional Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
itemgroup_name forms/items Study design name of the Item Group to be added within the Form
itemgroup_sequence forms/items Optional The specific Item Group sequence where the Item resides. If omitted, 1 is assumed. It is strongly recommended to always include the sequence, even for non-repeating.
value forms/items The value to set. See the table below for notes on Item types and value.
unit_value forms/items Required when the Item is a unit codelist type. Omit otherwise. The value must be the unit codelist code, not label.
change_reason forms/items Optional The reason for change of an Item value. For example: "Data updated by remote system"
externally_owned forms/items Optional When omitted true is used, i.e. the site user cannot then further edit the value. Pass a false to re-enable the ability for a user to edit a previously read only Item.

Upsert Form Data (Items)

Request - Setting values for one of each type of item

curl -X PUT https://my-vault.veevavault.com/api/v24.2/app/cdm/items \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
            {
                "study_country": "United States",
                "site": "101",
                "subject": "SCR-0001",
                "eventgroup_name": "egUNS",
                "eventgroup_sequence": 3,
                "event_name": "evUNS",
                "form_name": "OE",
                "form_sequence": 1,
                "items": [
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "CB",
                    "value": "true"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "CL",
                    "value": "Y"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DATEONLY",
                    "value": "2022-06-01"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DATEONLY_UNKS",
                    "value": "2022-UN-UN"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DATEANDTIME",
                    "value": "2022-06-01T12:30Z"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DT_WITH_UNKS",
                    "value": "2022-06-UNTUN:UNZ"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "INTFIELD",
                    "value": "3"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "DECIMAL",
                    "value": "5.2"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "UCLFIELD",
                    "value": "2.1",
                    "unit_value": "double_std"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "URL_FIELD",
                    "value": "https://www.google.com"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "SHORTTXT",
                    "value": "Some text short"
                  },
                  {
                    "itemgroup_name": "igOE",
                    "itemgroup_sequence": 1,
                    "item_name": "LONGTXT",
                    "value": "Some text in a long text field \n with a line break in the payload"
                  }
                ]
            }
        ]
}'

Response - Setting values for one of each type of item

{
    "responseStatus": "SUCCESS",
    "items": [
        {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "CB",
            "value": "true",
            "change_reason": "Action performed via the API",
            "externally_owned": true
        },
        {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "CL",
            "value": "Y",
            "change_reason": "Action performed via the API",
            "externally_owned": true
        },
        {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DATEONLY",
            "value": "2022-06-01",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DATEONLY_UNKS",
            "value": "2022-UN-UN",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DATEANDTIME",
            "value": "2022-06-01T12:30Z",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DT_WITH_UNKS",
            "value": "2022-06-UNTUN:UNZ",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "INTFIELD",
            "value": "3",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "DECIMAL",
            "value": "5.2",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "UCLFIELD",
            "value": "2.1",
            "unit_value": "double_std",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "URL_FIELD",
            "value": "https://www.google.com",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "SHORTTXT",
            "value": "Some text short",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         },
         {
            "responseStatus": "SUCCESS:UPDATED",
            "study_country": "United States",
            "site": "101",
            "subject": "SCR-0001",
            "eventgroup_name": "egUNS",
            "eventgroup_sequence": 3,
            "event_name": "evUNS",
            "event_sequence": 1,
            "form_name": "OE",
            "form_sequence": 1,
            "itemgroup_name": "igOE",
            "itemgroup_sequence": 1,
            "item_name": "LONGTXT",
            "value": "Some text in a long text field \n with a line break in the payload",
            "change_reason": "Action performed via the API",
            "externally_owned": true
         }
    ]
}

Notes

Setting Data by Item Type

Type Example Notes
Checkbox "value": "true" i.e., checked
Checkbox "value": "false" i.e., unchecked
Checkbox "value": "" Same effect as false - Suggest use true / false
Checkbox (any other value) Error returned
Codelist "value": "Y" e.g. "Yes" = "Y" in codelist definition
Codelist "value": "" Empty / unset the selection
Codelist (any other value, i.e., not a codelist code) Error returned
URL "value": "https://www.google.com" Set the value to a URL, on screen user can click to navigate to the URL, in another tab
URL "value": "" Empty / unset the value
URL (any value that does not start http or ftp) Error returned
Text Field "value": "Here is my text in the field" Set a value
Text Field "value": "" Empty / unset the value
Text Field (over max length) Error returned
Numeric "value": "3" E.g., a field with precision = 0 (no decimal portion)
Numeric "value": "13.4" E.g., a decimal portion allowed field (precision > 0)
Numeric "value": "" Empty / unset the value
Numeric (not numeric or violates length or precision) Error returned
Date "value": "2022-06-01" E.g., to set June 1st, 2022
Date "value": "" Empty / unset the value
Date "value": "2022-UN-UN" E.g., when the field allows unknowns in month and/or day. UN must be used in the appropriate portion
Date (bad date, not of proper format, yyyy-MM-dd) Error returned
DateTime "value": "2022-06-01T12:30:00Z" Set the datetime in full, this will take on the 'on screen' value (not the normalized)
DateTime "value": "" Empty / unset the value
DateTime (bad date, not of proper format, yyyy-MM-ddTHH:mmZ) Error returned
Time "value": "12:30" Set the time value
Time "value": "" Empty / unset the value
Time (bad date, not of proper format, HH:mm) Error returned
Unit Codelist "value": "62.2", "unit_value": "in" E.g., 'in' is a valid code in the unit codelist definition.
Unit Codelist "value": "", "unit_value": "" Empty / unset the value
Unit Codelist "value": "62.2" Error returned (must have both)
Unit Codelist (any violation of length, precision, or invalid unit code) Error returned

Endpoint

PUT /api/{version}/app/cdm/items

Required Permissions

The following permissions are required to use the Upsert Form Data API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country forms Name of the Study Country of the Subject
site forms Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject forms Name of the Subject (ID / number)
eventgroup_name forms Study design name of the Event Group
eventgroup_sequence forms Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per study design.
event_name forms Study design name of the Event
form_name forms Study design name of the Form
form_sequence forms Optional Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
itemgroup_name forms/items Study design name of the Item Group to be added within the Form
itemgroup_sequence forms/items The specific Item Group sequence where the Item resides, Required even if a non-repeating Item Group.
value forms/items The value to set. See the table below for notes on Item types and value.
unit_value forms/items Required when the Item is a unit codelist type. Omit otherwise. The value must be the unit codelist code, not label.
change_reason forms/items Optional The reason for change of an Item value. For example: "Data updated by remote system"
externally_owned forms/items Optional When omitted true is used, i.e. the site user cannot then further edit the value. Pass a false to re-enable the ability for a user to edit a previously read only Item.

Submit Forms

Request - Submit one form

curl -X POST https://my-vault.veevavault.com/api/v24.2/app/cdm/forms/actions/submit \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Enrollment-Visit",
            "event_name": "Enrollment-Visit",
            "form_name": "Randomization"
        }
    ]
}'

Response - Submit one form

{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Enrollment-Visit",
            "event_name": "Enrollment-Visit",
            "form_name": "Randomization"
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/forms/actions/submit

Required Permissions

The following permissions are required to use the Submit Forms API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country forms Name of the Study Country of the Subject
site forms Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject forms Name of the Subject (ID / number)
eventgroup_name forms Study design name of the Event Group
eventgroup_sequence forms Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per study design.
event_name forms Study design name of the Event
form_name forms Study design name of the Form
form_sequence forms Optional Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.

Reopen Submitted Forms

Request - Open one form for edit

curl -X POST https://cdms.vaultdev.com/api/{version}/app/cdm/forms/actions/edit \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "forms": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Enrollment-Visit",
            "event_name": "Enrollment-Visit",
            "form_name": "Randomization",
            "change_reason": "Transcription error"
        }
    ]
}'

Response - Open one form for edit

{
    "responseStatus": "SUCCESS",
    "forms": [
        {
            "responseStatus": "SUCCESS",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Enrollment-Visit",
            "eventgroup_sequence": 1,
            "event_name": "Enrollment-Visit",
            "event_sequence": 1,
            "form_name": "Enrollment-Visit",
            "form_sequence": 1,
            "change_reason": "Transcription error"
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/forms/actions/edit

Required Permissions

The following permissions are required to use the Reopen Submitted Forms API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country forms Name of the Study Country of the Subject
site forms Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject forms Name of the Subject (ID / number)
eventgroup_name forms Study design name of the Event Group
eventgroup_sequence forms Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per Study design.
event_name forms Study design name of the Event
form_name forms Study design name of the Form
form_sequence forms Optional Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
change_reason forms The reason for change for editing the Form

Queries

Queries are a method of review or error checking of entered data. Learn more about queries in Vault CDMS Help.

There are two types of queries:

As of the 24R2 API release, source system information can be indicated when opening, answering, or performing other actions for Queries. The information will also flow to data exports and the Query Progress Listing.

Values are all Optional, and include:

Name Max Length Actions Where Used Description
source_type Open If provided, the value must be external__v. The value will also be stored on the first message of the Query. When set, the Data Entry and Review user interfaces will show the source information.
source_system_name 100 Open The name of the system adding the Query. The value will also be stored on the first message of the Query.
source_user 100 Open The user (on behalf of) from the source system to associate to adding the Query. The value will also be stored on the first message of the Query.
source_id 64 Open Other value that is meaningful in the source system. The value will also be stored on the first message of the Query.
message_source_type Answer, Close, Reopen If provided, the value must be external__v. When set, the Data Entry and Review user interfaces will show the source information for the specific message/status change.
message_source_system_name 100 Answer, Close, Reopen The name of the system changing status and providing a message for the Query.
message_source_user 100 Answer, Close, Reopen The user (on behalf of) from the source system changing status and providing a message the Query.
message_source_id 64 Answer, Close, Reopen Other value that is meaningful in the source system

As an example, adding a query with a Vault user Eric Emerton, using source information of:

:

"source_type": "external__v",

"source_system_name": "ABC Pharma Data Warehouse",

"source_user": "Jeff Williams",

"source_id": "12312323-ABC-9223",

:

..yields this behavior in the Data Entry for the UI:

..and the with additional information in the hover:



Retrieve Queries

Request

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries?study_name=ABCP-2022-01_DEV1&study_country=United States&site=0101' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}'

Response

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 2,
        "total": 2
    },
    "queries": [
        {
            "id": "OPW000000003001",
            "query_name": "VV-000003",
            "manual": true,
            "query_status": "open__v",
            "study_country": "United States",
            "site": "101",
            "subject": "101-003",
            "eventgroup_name": "enrollment",
            "eventgroup_sequence": 1,
            "event_name": "enrollment_visit",
            "event_sequence": 1,
            "created_date": "2023-09-27T23:29:51Z",
            "created_by": "Cordelia Hunter",
            "source_type": null,
            "source_system_name": null,
            "source_user": null,
            "source_id": null,
            "messages": [
                {
                    "id": "OPY000000005001",
                    "activity": "open__v",
                    "message": "Open query on Event",
                    "message_date": "2023-09-27T23:29:52Z",
                    "message_by": "Cordelia Hunter",
                    "message_source_type": null,
                    "message_source_system_name": null,
                    "message_source_user": null,
                    "message_source_id": null
                }
            ]
        },
        {
            "id": "OPW000000004001",
            "query_name": "VV-000004",
            "manual": true,
            "query_status": "answered__v",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egLOGS",
            "eventgroup_sequence": 1,
            "event_name": "evLOGS",
            "event_sequence": 1,
            "form_name": "AE",
            "form_sequence": 1,
            "itemgroup_name": "AEDETAILS",
            "itemgroup_sequence": 1,
            "item_name": "AESTDT",
            "created_date": "2023-09-25T23:33:30Z",
            "created_by": "Warehouse Admin",
            "source_type": "external__v",
            "source_system_name": "ABC Pharma Data Warehouse System",
            "source_user": "Jeff Williams",
            "source_id": "12345-ABC-00023443",
            "messages": [
                {
                    "id": "OPY000000006001",
                    "activity": "open__v",
                    "message": "Please follow-up with CRA on this serious adverse event",
                    "message_date": "2023-09-25T23:33:31Z",
                    "message_by": "Warehouse Admin",
                    "message_source_type": "external__v",
                    "message_source_system_name": "ABC Pharma Data Warehouse System",
                    "message_source_user": "Jeff Williams",
                    "message_source_id": "12345-ABC-00023443"
                },
                {
                    "id": "OPY000000006002",
                    "activity": "answered__v",
                    "message": "Spoke to the CRA on Sept 26th and ensured checklist completed",
                    "message_date": "2023-09-27T13:36:31Z",
                    "message_by": "George Smith",
                    "message_source_type": null,
                    "message_source_system_name": null,
                    "message_source_user": null,
                    "message_source_id": null
                }
            ]
        }
    ]
}

Notes

Endpoint

GET /api/{version}/app/cdm/queries?study_name={study_name}&...other filters here...

Required Permissions

The following permissions are required to use the Retrieve Queries API:

The CDMS API Read Write and CDMS API Read Only roles grant these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Query String Parameters

Name Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country Optional Name of the Study Country to filter to
site Optional Name of the Site to filter to. Must include the study_country when using this.
subject Optional Name (ID/number) to filter to. Must include site when using this.
form_name Optional Study design name of a Form to filter to, e.g. all queries on the AE Form, across the Study.
query_status Optional Current status of the queries to filter to. Values to use are one of open__v, answered__v, or closed__v.
last_modified_date Optional Retrieve only Queries modified after this datetime. Use the format "yyyy-MM-ddTHH:mm:ssZ".
source_type Optional Retrieve only Queries with a specific source type value.
source_system_name Optional Retrieve only Queries with a specific source system name value.
id See next section: Retrieve Queries by ID (study context, by ID(s), or by coding definition are used, only one style)
coding_item_definition See later section: Retrieve Coding Queries (study context, by ID(s), or by coding definition are used, only one style)

This API supports pagination. By default, the page limit is set to 1000 records. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer or zero). If omitted, the default is 0.

For example, if the limit is set to 100, and there are 150 possible records, an offset of 0 returns records 0 through 99 (zero based). Then, offset of 100 would return records 100 through 149. More information on pagination is in the section Pagination

Response Details

On SUCCESS, Vault returns a list of Queries (as JSON array entries) with the following information:

Array Name Description
queries id Vault internal ID for the Query
queries query_name Another Vault internal ID for the Query, this one is visible from the UI
queries manual Whether the Query is classified System (false) or Manual (true)
queries query_status Values will be one of open__v, answered__v, or closed__v
queries study_country Name of the Study Country for the site of the Subject
queries site Name of the Site for the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
queries subject Name (ID/number) of the Subject
queries eventgroup_name Study design name for the Event Group
queries eventgroup_sequence Sequence of the Event Group of the Event. If repeating Event Group the value increments starting at 1, 2.... If it does not repeat, then 1 is always returned
queries event_name Study design name for a the Event
queries event_sequence Currently, always a 1. If the Event within a repeating Event Group the sequence increments at the evengroup_sequence level
queries form_name (When attached to an Item only, omitted for Event queries) Study design name for a Form
queries form_sequence (When attached to an Item only, omitted for Event queries) If the Form repeats per Study design, these increment starting at 1, 2.... If it does repeat, 1 is always returned.
queries itemgroup_name (When attached to an Item only, omitted for Event queries) Study design name of the Item Group
queries itemgroup_sequence (When attached to an Item only, omitted for Event queries) The specific Item Group sequence
queries item_name (When attached to an Item only, omitted for Event queries) Study design name of the Item
queries rule_definition When a Query originating from a Study design rule, that rule name. Omitted otherwise.
queries coding_item_definition When a Query originating from Open Coding Queries, that medical coding definition name. Omitted otherwise.
queries created_date The datetime that the Query was first created (UTC)
queries created_by Name (Firstname Lastname) of the User who created the Query.
queries source_type Source type of the Query, if added with a value.
queries source_system_name Source system name of the Query, if added with a value.
queries source_user Source user of the Query, if added with a value.
queries source_id Source ID of the Query, if added with a value.
queries/messages id Vault internal ID of the Query message. These entries reading top to bottom (in the array) comprise the movement of statuses, plus comments of the Query
queries/messages activity The Query status at that entry. Values will be one of open__v, answered__v, or closed__v
queries/messages message The message at that Query update. Some activity entries do not include a specific message (e.g. close of an added Query)
queries/messages message_date The datetime that this message/status change (UTC)
queries/messages message_by Name (Firstname Lastname) of the User who moved the status / commented at this revision of the Query
queries/messages message_source_type Source type of the message.
queries/messages message_source_system_name Source system name of the message.
queries/messages message_source_user Source user of the message.
queries/messages message_source_id Source ID of the message.

Retrieve Queries by ID

Request

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries?study_name=ABCP-2022-01_DEV1&id=OPW000000004001' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}'

Response

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 1,
        "total": 1
    },
    "queries": [
        {
            "id": "OPW000000004001",
            "query_name": "VV-000004",
            "manual": true,
            "query_status": "answered__v",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "egLOGS",
            "eventgroup_sequence": 1,
            "event_name": "evLOGS",
            "event_sequence": 1,
            "form_name": "AE",
            "form_sequence": 1,
            "itemgroup_name": "AEDETAILS",
            "itemgroup_sequence": 1,
            "item_name": "AESTDT",
            "created_date": "2023-09-25T23:33:30Z",
            "created_by": "Warehouse Admin",
            "source_type": "external__v",
            "source_system_name": "ABC Pharma Data Warehouse System",
            "source_user": "Jeff Williams",
            "source_id": "12345-ABC-00023443",
            "messages": [
                {
                    "id": "OPY000000006001",
                    "activity": "open__v",
                    "message": "Please follow-up with CRA on this serious adverse event",
                    "message_date": "2023-09-25T23:33:31Z",
                    "message_by": "Warehouse Admin",
                    "message_source_type": "external__v",
                    "message_source_system_name": "ABC Pharma Data Warehouse System",
                    "message_source_user": "Jeff Williams",
                    "message_source_id": "12345-ABC-00023443"
                },
                {
                    "id": "OPY000000006002",
                    "activity": "answered__v",
                    "message": "Spoke to the CRA on Sept 26th and ensured checklist completed",
                    "message_date": "2023-09-27T13:36:31Z",
                    "message_by": "George Smith",
                    "message_source_type": null,
                    "message_source_system_name": null,
                    "message_source_user": null,
                    "message_source_id": null
                }
            ]
        }
    ]
}

Notes

Endpoint

GET /api/{version}/app/cdm/queries?study_name={study_name}&id={id}

Required Permissions

The following permissions are required to use the Retrieve Queries by ID API:

The CDMS API Read Write and CDMS API Read Only roles grant these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Query String Parameters

Name Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
last_modified_date Optional Retrieve only Queries modified after this datetime. Use the format "yyyy-MM-ddTHH:mm:ssZ".
id The Vault internal ID of the Query, or multiple in a comma-separated list. This parameter overrides all other parameters, except for study_name

This API supports pagination, although unlikely to use paging when searching specific Queries by ID. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer or zero). If omitted, the default is 0.

For example, if the limit is set to 100, and there are 150 possible records, an offset of 0 returns records 0 through 99 (zero based). Then, offset of 100 would return records 100 through 149. More information on pagination is in the section Pagination

Response Details

On SUCCESS, Vault returns a list of Queries (as JSON array entries) with the following information:

Array Name Description
queries id Vault internal ID for the Query
queries query_name Another Vault internal ID for the Query, this one is visible from the UI
queries manual Whether the query is classified System (false) or Manual (true)
queries query_status Values will be one of open__v, answered__v, or closed__v
queries study_country Name of the Study Country for the site of the Subject
queries site Name of the Site for the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
queries subject Name (ID/number) of the Subject
queries eventgroup_name Study design name for the Event Group
queries eventgroup_sequence Sequence of the Event Group of the Event. If repeating Event Group the value increments starting at 1, 2.... If it does not repeat, then 1 is always returned
queries event_name Study design name for a the Event
queries event_sequence Currently, always a 1. If the Event within a repeating Event Group the sequence increments at the evengroup_sequence level
queries form_name (When attached to an Item only, omitted for Event queries) Study design name for a Form
queries form_sequence (When attached to an Item only, omitted for Event queries) If the Form repeats per Study design, these increment starting at 1, 2.... If it does repeat, 1 is always returned.
queries itemgroup_name (When attached to an Item only, omitted for Event queries) Study design name of the Item Group
queries itemgroup_sequence (When attached to an Item only, omitted for Event queries) The specific Item Group sequence
queries item_name (When attached to an Item only, omitted for Event queries) Study design name of the Item
queries rule_definition When a Query originating from a Study design rule, that rule name. Omitted otherwise.
queries coding_item_definition When a Query originating from Open Coding Queries, that medical coding definition name. Omitted otherwise.
queries created_date The datetime that the Query was first created (UTC)
queries created_by Name (Firstname Lastname) of the User who created the Query
queries source_type Source type of the Query, if added with a value.
queries source_system_name Source system name of the Query, if added with a value.
queries source_user Source user of the Query, if added with a value.
queries source_id Source ID of the Query, if added with a value.
queries/messages id Vault internal ID of the Query message. These entries reading top to bottom (in the array) comprise the movement of statuses, plus comments of the Query
queries/messages activity The Query status at that entry. Values will be one of open__v, answered__v, or closed__v
queries/messages message The message at that Query update. Some activity entries do not include a specific message (e.g. close of an added Query)
queries/messages message_date The datetime that this message/status change (UTC)
queries/messages message_by Name (Firstname Lastname) of the User who moved the status / commented at this revision of the Query
queries/messages message_source_type Source type of the message.
queries/messages message_source_system_name Source system name of the message.
queries/messages message_source_user Source user of the message.
queries/messages message_source_id Source ID of the message.

Open Queries

Request - Add one query, item level

curl -X POST \
  https://my-vault.veevavault.com/api/v24.2/app/cdm/queries \
  -H "Authorization: {SESSION_ID}" \
  -H "Accept: application/json" \
  -H "Content-Type: application/json" \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
       {
         "study_country": "United States",
         "site": "101",
         "subject": "101-001",
         "eventgroup_name": "EG.SCR",
         "eventgroup_sequence": 1,
         "event_name": "EV.SCR",
         "form_name": "F.DM",
         "form_sequence": 1
         "itemgroup_name": "IG.DEMOG",
         "itemgroup_sequence": 1,
         "item_name": "DOB",
         "message": "This date does not match our records."
       }
    ]
  }'

Response - Add one query, item level


{
    "responseStatus": "SUCCESS",
    "queries": [
       {
         "responseStatus": "SUCCESS",
         "id": "OPW000000006001",
         "query_name": "VV-000091",
         "query_status": "open__v"
       }
    ]
}

Request - Add two queries, item level and event level

curl -X POST \
  https://my-vault.veevavault.com/api/v24.2/app/cdm/queries \
  -H "Authorization: {SESSION_ID}" \
  -H "Accept: application/json" \
  -H "Content-Type: application/json" \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
       {
         "study_country": "United States",
         "site": "101",
         "subject": "101-001",
         "eventgroup_name": "EG.SCR",
         "eventgroup_sequence": 1,
         "event_name": "EV.SCR",
         "message": "Please double check the screening date entered"
       },
       {
         "study_country": "United States",
         "site": "101",
         "subject": "101-001",
         "eventgroup_name": "EG.SCR",
         "eventgroup_sequence": 1,
         "event_name": "EV.SCR",
         "form_name": "F.DM",
         "form_sequence": 1
         "itemgroup_name": "IG.DEMOG",
         "itemgroup_sequence": 1,
         "item_name": "DOB",
         "message": "This date does not match our records."
       }
    ]
  }'

Response - Add two queries, item level and event level


{
    "responseStatus": "SUCCESS",
    "queries": [
       {
         "responseStatus": "SUCCESS",
         "id": "OPW000000006001",
         "query_name": "VV-000091",
         "query_status": "open__v"
       },
       {
         "responseStatus": "SUCCESS",
         "id": "OPW000000006002",
         "query_name": "VV-000092",
         "query_status": "open__v"
       }
    ]
}

Request - Add one query, with source system information

curl -X POST \
  https://my-vault.veevavault.com/api/v24.2/app/cdm/queries \
  -H "Authorization: {SESSION_ID}" \
  -H "Accept: application/json" \
  -H "Content-Type: application/json" \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
       {
         "study_country": "United States",
         "site": "101",
         "subject": "101-001",
         "eventgroup_name": "EG.SCR",
         "eventgroup_sequence": 1,
         "event_name": "EV.SCR",
         "message": "Please double check the screening date entered",
         "source_type": "external__v",
         "source_system_name": "ABC Pharma Data Warehouse System",
         "source_user": "Jeff Williams",
         "source_id": "12345-ABC-00023443"
       }
    ]
  }'

Response - Add one query, with source system information


{
    "responseStatus": "SUCCESS",
    "queries": [
       {
         "responseStatus": "SUCCESS",
         "id": "OPW000000006001",
         "query_name": "VV-000091",
         "query_status": "open__v"
       }
    ]
}

Endpoint

POST /api/{version}/app/cdm/queries

Required Permissions

The following permissions are required to use the Open Queries API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country queries Name of the Study Country of the Subject
site queries Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject queries Name of the Subject (ID / number)
eventgroup_name queries Study design name of the Event Group
eventgroup_sequence queries Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per Study design.
event_name queries Study design name of the Event
form_name queries Optional (required for Item queries) Study design name of the Form
form_sequence queries Optional (required for Item queries) Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
itemgroup_name queries Optional (required for Item queries) Study design name of the Item Group where the Item resides
itemgroup_sequence queries Optional (required for Item queries) The specific Item Group sequence where the Item resides. If omitted, 1 is assumed. It is strongly recommended to always include the sequence, even for non-repeating.
message queries (Limit of 500 characters) The initial message of the Query
source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information. The value will also be set on the first message of the Query.
source_system_name queries Optional (Limit of 100 characters) Name of the source system. The value will also be set on the first message of the Query.
source_user queries Optional (Limit of 100 characters) User in the source system. The value will also be set on the first message of the Query.
source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system. The value will also be set on the first message of the Query.

Open Queries by Event ID

Request - Open one query on an event

curl -L -g -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/events/actions/openquery' \
-H 'Authorization: {SESSION_ID}' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "manual": false,
    "queries": [
       {
         "id": "OPS00000001X001",
         "message": "Screening date for the subject looks to be too early?"
       }
    ]
}'

Response - Open one query on an event

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
          "responseStatus": "SUCCESS",
          "id": "OPW000000003001",
          "query_status": "open__v",
          "event_id": "OPS00000001X001",
          "query_name": "VV-000248",
          "created_date": "2024-06-16T15:52:03Z",
          "created_by": "Eric Emerton",
          "source_type": null,
          "source_system_name": null,
          "source_user": null,
          "source_id": null,
          "messages": [
             {
               "id": "OPY000000012001",
               "activity": "open__v",
               "message": "Screening date for the subject looks to be too early?",
               "message_date": "2024-06-16T15:52:04Z",
               "message_by": "Eric Emerton",
               "message_source_type": null,
               "message_source_system_name": null,
               "message_source_user": null,
               "message_source_id": null,
              }
           ]
        }
    ]
}

Request - Open one query on an event with source information

curl -L -g -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/events/actions/openquery' \
-H 'Authorization: {SESSION_ID}' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "manual": false,
    "queries": [
       {
         "id": "OPS00000001X001",
         "message": "Screening date for the subject looks to be too early?",
         "source_type": "external__v",
         "source_system_name": "ABC Pharma Data Warehouse System",
         "source_user": "Jeff Williams",
         "source_id": "12345-ABC-00023443"
       }
    ]
}'

Response - Open one query on an event with source information

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
          "responseStatus": "SUCCESS",
          "id": "OPW000000003001",
          "query_status": "open__v",
          "event_id": "OPS00000001X001",
          "query_name": "VV-000248",
          "created_date": "2024-06-16T15:52:03Z",
          "created_by": "Warehouse Admin",
          "source_type": "external__v",
          "source_system_name": "ABC Pharma Data Warehouse System",
          "source_user": "Jeff Williams",
          "source_id": "12345-ABC-00023443",
          "messages": [
             {
               "id": "OPY000000012001",
               "activity": "open__v",
               "message": "Screening date for the subject looks to be too early?",
               "message_date": "2024-06-16T15:52:04Z",
               "message_by": "Warehouse Admin",
               "message_source_type": "external__v",
               "message_source_system_name": "ABC Pharma Data Warehouse System",
               "message_source_user": "Jeff Williams",
               "message_source_id": "12345-ABC-00023443"
              }
           ]
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/events/actions/openquery

Required Permissions

The following permissions are required to use the Open Queries by Event ID API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
manual Optional Whether the Query (or queries) should be considered manual. The default is true when omitted. A value of false implies the Query is added by a system, although not necessarily the CDMS system. This value will be applied to all queries added in the request.
id queries The Vault internal ID of the Event to open the Query on.
message queries (Limit of 500 characters) The initial message of the Query
source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information. The value will also be set on the first message of the Query.
source_system_name queries Optional (Limit of 100 characters) Name of the source system. The value will also be set on the first message of the Query.
source_user queries Optional (Limit of 100 characters) User in the source system. The value will also be set on the first message of the Query.
source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system. The value will also be set on the first message of the Query.

Open Queries by Item ID

Request

curl -L -g -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/items/actions/openquery' \
-H 'Authorization: {SESSION_ID}' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "manual": false,
    "queries": [
       {
         "id": "OPV000000000641",
         "message": "This item value is out of range. Please correct."
       }
    ]
}'

Response

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
          "responseStatus": "SUCCESS",
          "id": "OPW000000003001",
          "query_status": "open__v",
          "item_id": "OPV000000000641",
          "query_name": "VV-000248",
          "created_date": "2024-06-16T15:52:03Z",
          "created_by": "Eric Emerton",
          "source_type": null,
          "source_system_name": null,
          "source_user": null,
          "source_id": null,
          "messages": [
             {
               "id": "OPY000000012001",
               "activity": "open__v",
               "message": "This item value is out of range. Please correct.",
               "message_date": "2024-06-16T15:52:04Z",
               "message_by": "Eric Emerton",
               "message_source_type": null,
               "message_source_system_name": null,
               "message_source_user": null,
               "message_source_id": null,
              }
           ]
        }
    ]
}

Request - Open one query on an item with source information

curl -L -g -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/items/actions/openquery' \
-H 'Authorization: {SESSION_ID}' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "manual": false,
    "queries": [
       {
         "id": "OPV000000000641",
         "message": "This item value is out of range. Please correct.",
         "source_type": "external__v",
         "source_system_name": "ABC Pharma Data Warehouse System",
         "source_user": "Jeff Williams",
         "source_id": "12345-ABC-00023443"
       }
    ]
}'

Response - Open one query on an item with source information

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
          "responseStatus": "SUCCESS",
          "id": "OPW000000003001",
          "query_status": "open__v",
          "event_id": "OPS00000001X001",
          "query_name": "VV-000248",
          "created_date": "2024-06-16T15:52:03Z",
          "created_by": "Warehouse Admin",
          "source_type": "external__v",
          "source_system_name": "ABC Pharma Data Warehouse System",
          "source_user": "Jeff Williams",
          "source_id": "12345-ABC-00023443",
          "messages": [
             {
               "id": "OPY000000012001",
               "activity": "open__v",
               "message": "This item value is out of range. Please correct.",
               "message_date": "2024-06-16T15:52:04Z",
               "message_by": "Warehouse Admin",
               "message_source_type": "external__v",
               "message_source_system_name": "ABC Pharma Data Warehouse System",
               "message_source_user": "Jeff Williams",
               "message_source_id": "12345-ABC-00023443"
              }
           ]
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/items/actions/openquery

Required Permissions

The following permissions are required to use the Open Queries by Item ID API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
manual Optional Whether the Query (or queries) should be considered manual. The default is true when omitted. A value of false implies the Query is added by a system, although not necessarily the CDMS system. This value will be applied to all queries added in the request.
id queries The Vault internal ID of the Item to open the Query on.
message queries (Limit of 500 characters) The initial message of the Query
source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information. The value will also be set on the first message of the Query.
source_system_name queries Optional (Limit of 100 characters) Name of the source system. The value will also be set on the first message of the Query.
source_user queries Optional (Limit of 100 characters) User in the source system. The value will also be set on the first message of the Query.
source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system. The value will also be set on the first message of the Query.

Open Queries by Medical Coding Request

See the section, Open Coding Queries for these details.





Answer Queries

Request - Answer by Country/Site/Subject...

curl -X POST  https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/answer \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Enrollment-Visit",
            "eventgroup_sequence": 1,
            "event_name": "Enrollment-Visit",
            "event_sequence": 1,
            "form_name": "Randomization",
            "form_sequence": 1,
            "itemgroup_name": "Randomization",
            "itemgroup_sequence": 1,
            "item_name": "Date-of-randomization",
            "message": "This subject was enrolled late."
        }
    ]
  }'

Response - Answer by Country/Site/Subject...

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000000201",
            "query_name": "VV-000002",
            "query_status": "answered__v"
        }
    ]
}

Request - Answer by ID

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/answer' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
           "id": "OPW000000001001",
           "message": "The screening date is correct."
        }
    ]
  }'

Response - Answer by ID

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001001",
            "query_name": "VV-000001",
            "query_status": "answered__v"
        }
    ]
}

Request - Answer by ID with source information

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/answer' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
           "id": "OPW000000001001",
           "message": "The screening date is correct.",
           "message_source_type": "external__v",
           "message_source_system_name": "ABC Pharma Data Warehouse System",
           "message_source_user": "Jeff Williams",
           "message_source_id": "12345-ABC-00023443"
        }
    ]
  }'

Response - Answer by ID with source information

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001001",
            "query_name": "VV-000001",
            "query_status": "answered__v"
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/queries/actions/answer

Required Permissions

The following permissions are required to use the Answer Queries API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters (by Study Context)

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country queries Name of the Study Country of the Subject
site queries Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject queries Name of the Subject (ID / number)
eventgroup_name queries Study design name of the Event Group
eventgroup_sequence queries Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per Study design.
event_name queries Study design name of the Event
form_name queries Optional (required for Item queries) Study design name of the Form
form_sequence queries Optional (required for Item queries) Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
itemgroup_name queries Optional (required for Item queries) Study design name of the Item Group where the Item resides
itemgroup_sequence queries Optional (required for Item queries) The specific Item Group sequence where the Item resides. If omitted, 1 is assumed. It is strongly recommended to always include the sequence, even for non-repeating.
message queries (Limit of 500 characters) The message at answer of the Query
message_source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information.
message_source_system_name queries Optional (Limit of 100 characters) Name of the source system.
message_source_user queries Optional (Limit of 100 characters) User in the source system.
message_source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system.

Body Parameters (By ID)

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
id queries The Vault ID of the Query, found from response on open of the Query or from Retrieve Queries endpoint
message queries (Limit of 500 characters) The message at answer of the Query
message_source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information.
message_source_system_name queries Optional (Limit of 100 characters) Name of the source system.
message_source_user queries Optional (Limit of 100 characters) User in the source system.
message_source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system.

Close Queries

Request - Close by Country/Site/Subject...

curl -X POST  https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/close \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Enrollment-Visit",
            "eventgroup_sequence": 1,
            "event_name": "Enrollment-Visit",
            "event_sequence": 1,
            "form_name": "Randomization",
            "form_sequence": 1,
            "itemgroup_name": "Randomization",
            "itemgroup_sequence": 1,
            "item_name": "Date-of-randomization",
            "message": "This issue is now resolved. Query closed."
        }
    ]
  }'

Response - Close by Country/Site/Subject...

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000000201",
            "query_name": "VV-000002",
            "query_status": "closed__v"
        }
    ]
}

Request - Close by ID

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/close' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
           "id": "OPW000000001001",
           "message": "Closing query - verified that screening date is correct."
        }
    ]
  }'

Response - Close by ID

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001001",
            "query_name": "VV-000001",
            "query_status": "closed__v"
        }
    ]
}

Request - Close by ID with source information

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/close' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
           "id": "OPW000000001001",
           "message": "Closing query - verified that screening date is correct.",
           "message_source_type": "external__v",
           "message_source_system_name": "ABC Pharma Data Warehouse System",
           "message_source_user": "Jeff Williams",
           "message_source_id": "12345-ABC-00023443"
        }
    ]
  }'

Response - Close by ID with source information

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001001",
            "query_name": "VV-000001",
            "query_status": "closed__v"
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/queries/actions/close

Required Permissions

The following permissions are required to use the Close Queries API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters (by Study Context)

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country queries Name of the Study Country of the Subject
site queries Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject queries Name of the Subject (ID / number)
eventgroup_name queries Study design name of the Event Group
eventgroup_sequence queries Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per Study design.
event_name queries Study design name of the Event
form_name queries Optional (required for Item queries) Study design name of the Form
form_sequence queries Optional (required for Item queries) Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
itemgroup_name queries Optional (required for Item queries) Study design name of the Item Group where the Item resides
itemgroup_sequence queries Optional (required for Item queries) The specific Item Group sequence where the Item resides. If omitted, 1 is assumed. It is strongly recommended to always include the sequence, even for non-repeating.
message queries Optional (Limit of 500 characters) The message at close of the Query
message_source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information.
message_source_system_name queries Optional (Limit of 100 characters) Name of the source system.
message_source_user queries Optional (Limit of 100 characters) User in the source system.
message_source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system.

Body Parameters (By ID)

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
id queries The Vault ID of the Query, found from response on open of the Query or from Retrieve Queries endpoint
message queries Optional (Limit of 500 characters) The message at close of the Query
message_source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information.
message_source_system_name queries Optional (Limit of 100 characters) Name of the source system.
message_source_user queries Optional (Limit of 100 characters) User in the source system.
message_source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system.

Close Queries (by ID / Batch)

Request - Close by ID (batch API at 22R2 and later)

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/closebyid' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
           "id": "OPW000000001001",
           "message": "Closing query - verified that screening date is correct."
        },
        {
           "id": "OPW000000001002",
           "message": "Closing query - added in error."
        }
    ]
  }'

Response - Close by ID (batch API at 22R2 and later)

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001001",
            "query_status": "closed__v"
        },
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001002",
            "query_status": "closed__v"
        }
    ]
}

Request - Close by ID (batch API at 22R2 and later) with source information

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/closebyid' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
           "id": "OPW000000001001",
           "message": "Closing query - verified that screening date is correct.",
           "message_source_type": "external__v",
           "message_source_system_name": "ABC Pharma Data Warehouse System",
           "message_source_user": "Jeff Williams",
           "message_source_id": "12345-ABC-00023443"
        },
        {
           "id": "OPW000000001002",
           "message": "Closing query - added in error.",
           "message_source_type": "external__v",
           "message_source_system_name": "ABC Pharma Data Warehouse System",
           "message_source_user": "Jeff Williams",
           "message_source_id": "12345-ABC-00023447"
        }
    ]
  }'

Response - Close by ID (batch API at 22R2 and later) with source information

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001001",
            "query_status": "closed__v"
        },
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001002",
            "query_status": "closed__v"
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/queries/actions/closebyid

Required Permissions

The following permissions are required to use the Close Queries API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
id queries The Vault ID of the Query, found from response on open of the Query or from Retrieve Queries endpoint
message queries Optional (Limit of 500 characters) The message at close of the Query
message_source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information.
message_source_system_name queries Optional (Limit of 100 characters) Name of the source system.
message_source_user queries Optional (Limit of 100 characters) User in the source system.
message_source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system.

Reopen Queries

Request - Reopen by Country/Site/Subject...

curl -X POST  https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/reopen \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  -H 'Authorization: {SESSION_ID}' \
  -d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Enrollment-Visit",
            "eventgroup_sequence": 1,
            "event_name": "Enrollment-Visit",
            "event_sequence": 1,
            "form_name": "Randomization",
            "form_sequence": 1,
            "itemgroup_name": "Randomization",
            "itemgroup_sequence": 1,
            "item_name": "Date-of-randomization",
            "message": "Sign-in logs indicate that this subject was actually enrolled on the 20th. Reopening the query."
        }
    ]
  }'

Response - Reopen by Country/Site/Subject...

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000000201",
            "query_name": "VV-000002",
            "query_status": "open__v"
        }
    ]
}

Request - Reopen by ID

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/reopen' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
            "id": "OPW000000001001",
            "message": "Reopening query: Received new information."
        }
    ]
  }'

Response - Reopen by ID

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001001",
            "query_name": "VV-000001",
            "query_status": "open__v"
        }
    ]
}

Request - Reopen by ID with source information

curl -L -X POST 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries/actions/reopen' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}' \
-d '{
    "study_name": "ABCP-2022-01_DEV1",
    "queries": [
        {
           "id": "OPW000000001001",
           "message": "Reopening query: Received new information.",
           "message_source_type": "external__v",
           "message_source_system_name": "ABC Pharma Data Warehouse System",
           "message_source_user": "Jeff Williams",
           "message_source_id": "12345-ABC-00023443"
        }
    ]
  }'

Response - Reopen by ID with source information

{
    "responseStatus": "SUCCESS",
    "queries": [
        {
            "responseStatus": "SUCCESS",
            "id": "OPW000000001001",
            "query_name": "VV-000001",
            "query_status": "open__v"
        }
    ]
}

Notes

Endpoint

POST /api/{version}/app/cdm/queries/actions/reopen

Required Permissions

The following permissions are required to use the Reopen Queries API:

The CDMS API Read Write role grants these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Body Parameters (by Study Context)

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
study_country queries Name of the Study Country of the Subject
site queries Name of the Site of the Subject. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
subject queries Name of the Subject (ID / number)
eventgroup_name queries Study design name of the Event Group
eventgroup_sequence queries Optional If omitted, 1 is assumed. Use this parameter if the Event Group is repeating, per Study design.
event_name queries Study design name of the Event
form_name queries Optional (required for Item queries) Study design name of the Form
form_sequence queries Optional (required for Item queries) Specific Form sequence (i.e., repeating Form area) to perform on. If omitted, 1 is assumed.
itemgroup_name queries Optional (required for Item queries) Study design name of the Item Group where the Item resides
itemgroup_sequence queries Optional (required for Item queries) The specific Item Group sequence where the Item resides. If omitted, 1 is assumed. It is strongly recommended to always include the sequence, even for non-repeating.
message queries (Limit of 500 characters) The message at reopen of the Query
message_source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information.
message_source_system_name queries Optional (Limit of 100 characters) Name of the source system.
message_source_user queries Optional (Limit of 100 characters) User in the source system.
message_source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system.

Body Parameters (By ID)

Name Array Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
id queries The Vault ID of the Query, found from response on open of the Query or from Retrieve Queries endpoint
message queries (Limit of 500 characters) The message at reopen of the Query
message_source_type queries Optional When set, the value must be external__v and the Data Entry and Review user interfaces will show the source information.
message_source_system_name queries Optional (Limit of 100 characters) Name of the source system.
message_source_user queries Optional (Limit of 100 characters) User in the source system.
message_source_id queries Optional (Limit of 64 characters) Other meaningful value for the source system.

Coding

A Medical Coding Request represents an Item that is being coded, e.g Severe Headache on an AE Form. These requests are added and updated upon the submission of the Form containing the Item. MedDRA and WHODrug (B3 or C3) versions are configured per Study design.

Retrieve Coding Requests

Request - 2 MedDRA coding requests, one coded, one not

curl --location --request GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/coder/codingrequests?study_name=ABCP-2022-01_DEV1&coding_item_definition_id=V0T000000002001' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}'

Response - 2 MedDRA coding requests, one coded, one not

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 2,
        "total": 2
    },
    "codingrequests": [
        {
            "coding_item_definition_id": "V0T000000002001",
            "form_coding_status": "active__v",
            "form_type": "ae__v",
            "dictionary_definition": "MedDRA",
            "requests": [
                {
                    "id": "V0V000000003001",
                    "study_country": "United States",
                    "site": "101",
                    "subject": "SCR-0001",
                    "verbatim": "My Term 1",
                    "start_date": "",
                    "stop_date": "",
                    "eventgroup_name": "LOGS",
                    "eventgroup_sequence": 1,
                    "event_name": "LOGS",
                    "event_sequence": 1,
                    "form_name": "AE",
                    "form_sequence": 1,
                    "itemgroup_name": "ig-AE",
                    "itemgroup_sequence": 1,
                    "item_name": "AETERM",
                    "coding_status": "open__v",
                    "last_modified_date": "2022-05-23T17:34:46Z",
                    "created_date": "2022-05-23T17:34:46Z",
                    "created_by": "System",
                    "other_properties": {
                        "My Label for SAE Form Uploaded": null
                    },
                    "seriousness": "Yes",
                    "severity": "",
                    "llt_code": "",
                    "llt": "",
                    "pt_code": "",
                    "pt": "",
                    "hlt_code": "",
                    "hlt": "",
                    "hlgt_code": "",
                    "hlgt": "",
                    "soc": "",
                    "soc_code": "",
                    "primary_path": ""
                },
                {
                    "id": "V0V000000003002",
                    "study_country": "United States",
                    "site": "101",
                    "subject": "SCR-0001",
                    "verbatim": "My AE 2",
                    "start_date": "2022-05-01T00:00:00Z",
                    "stop_date": "",
                    "eventgroup_name": "LOGS",
                    "eventgroup_sequence": 1,
                    "event_name": "LOGS",
                    "event_sequence": 1,
                    "form_name": "AE",
                    "form_sequence": 2,
                    "itemgroup_name": "ig-AE",
                    "itemgroup_sequence": 1,
                    "item_name": "AETERM",
                    "coding_status": "coded__v",
                    "last_coded_date": "2022-06-02T18:35:03Z",
                    "last_modified_date": "2022-06-02T18:35:03Z",
                    "created_date": "2022-05-23T17:35:27Z",
                    "created_by": "System",
                    "other_properties": {
                        "My Label for SAE Form Uploaded": "true"
                    },
                    "seriousness": "No",
                    "severity": "",
                    "llt_code": "10027599",
                    "llt": "Migraine",
                    "pt_code": "10027599",
                    "pt": "Migraine",
                    "hlt_code": "10027603",
                    "hlt": "Migraine headaches",
                    "hlgt_code": "10019231",
                    "hlgt": "Headaches",
                    "soc": "Nervous system disorders",
                    "soc_code": "10029205",
                    "primary_path": "Y"
                }
            ]
        }
    ]
}

Request - 2 WHODrug coding requests, one coded, one not

curl --location --request GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/coder/codingrequests?study_name=ABCP-2022-01_DEV1&coding_item_definition_id=V0T000000004001' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}'

Response - 2 WHODrug coding requests, one coded, one not

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 2,
        "total": 2
    },
    "codingrequests": [
        {
            "coding_item_definition_id": "V0T000000004001",
            "form_coding_status": "active__v",
            "form_type": "cm__v",
            "dictionary_definition": "WHODrug C3",
            "requests": [
                {
                    "id": "V0V000000004001",
                    "study_country": "United States",
                    "site": "101",
                    "subject": "SCR-0001",
                    "verbatim": "Aspirin",
                    "start_date": "",
                    "stop_date": "",
                    "eventgroup_name": "LOGS",
                    "eventgroup_sequence": 1,
                    "event_name": "LOGS",
                    "event_sequence": 1,
                    "form_name": "CM",
                    "form_sequence": 1,
                    "itemgroup_name": "ig-CM",
                    "itemgroup_sequence": 1,
                    "item_name": "CMTRT",
                    "coding_status": "coded__v",
                    "last_coded_date": "2022-06-02T20:02:26Z",
                    "last_modified_date": "2022-06-02T20:02:26Z",
                    "created_date": "2022-06-02T20:00:44Z",
                    "created_by": "System",
                    "other_properties": {},
                    "indication": "Headache",
                    "route": "Oral",
                    "drug_name": "Aspirin",
                    "drug_code": "00002701004",
                    "preferred_code": "00002701001",
                    "preferred_name": "Acetylsalicylic acid",
                    "atc4_code": "N02BA",
                    "atc4": "Salicylic acid and derivatives",
                    "atc3_code": "N02B",
                    "atc3": "OTHER ANALGESICS AND ANTIPYRETICS",
                    "atc2_code": "N02",
                    "atc2": "ANALGESICS",
                    "atc1_code": "N",
                    "atc1": "NERVOUS SYSTEM"
                },
                {
                    "id": "V0V000000004002",
                    "site": "101",
                    "subject": "SCR-0001",
                    "verbatim": "Ibuprofen",
                    "start_date": "",
                    "stop_date": "",
                    "eventgroup_name": "LOGS",
                    "eventgroup_sequence": 1,
                    "event_name": "LOGS",
                    "event_sequence": 1,
                    "form_name": "CM",
                    "form_sequence": 2,
                    "itemgroup_name": "ig-CM",
                    "itemgroup_sequence": 1,
                    "item_name": "CMTRT",
                    "coding_status": "open__v",
                    "last_coded_date": "",
                    "last_modified_date": "2022-06-02T20:01:47Z",
                    "created_date": "2022-06-02T20:01:47Z",
                    "created_by": "System",
                    "other_properties": {},
                    "indication": "My indication",
                    "route": "Nasal",
                    "drug_name": "",
                    "drug_code": "",
                    "preferred_code": "",
                    "preferred_name": "",
                    "atc4_code": "",
                    "atc4": "",
                    "atc3_code": "",
                    "atc3": "",
                    "atc2_code": "",
                    "atc2": "",
                    "atc1_code": "",
                    "atc1": ""
                }
            ]
        }
    ]
}

Request - WHODrug requests, filtered to just those with coded or auto coded status

curl --location --request GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/coder/codingrequests?study_name=ABCP-2022-01_DEV1&coding_item_definition_id=V0T000000004001&coding_status=coded__v,autocoded__v' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}'

Response - WHODrug requests, filtered to just those with coded or auto coded status

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 1,
        "total": 1
    },
    "codingrequests": [
        {
            "coding_item_definition_id": "V0T000000004001",
            "form_coding_status": "active__v",
            "form_type": "cm__v",
            "dictionary_definition": "WHODrug C3",
            "requests": [
                {
                    "id": "V0V000000004001",
                    "study_country": "United States",
                    "site": "101",
                    "subject": "SCR-0001",
                    "verbatim": "Aspirin",
                    "start_date": "",
                    "stop_date": "",
                    "eventgroup_name": "LOGS",
                    "eventgroup_sequence": 1,
                    "event_name": "LOGS",
                    "event_sequence": 1,
                    "form_name": "CM",
                    "form_sequence": 1,
                    "itemgroup_name": "ig-CM",
                    "itemgroup_sequence": 1,
                    "item_name": "CMTRT",
                    "coding_status": "coded__v",
                    "last_coded_date": "2022-06-02T20:02:26Z",
                    "last_modified_date": "2022-06-02T20:02:26Z",
                    "created_date": "2022-06-02T20:00:44Z",
                    "created_by": "System",
                    "other_properties": {},
                    "indication": "Headache",
                    "route": "Oral",
                    "drug_name": "Aspirin",
                    "drug_code": "00002701004",
                    "preferred_code": "00002701001",
                    "preferred_name": "Acetylsalicylic acid",
                    "atc4_code": "N02BA",
                    "atc4": "Salicylic acid and derivatives",
                    "atc3_code": "N02B",
                    "atc3": "OTHER ANALGESICS AND ANTIPYRETICS",
                    "atc2_code": "N02",
                    "atc2": "ANALGESICS",
                    "atc1_code": "N",
                    "atc1": "NERVOUS SYSTEM"
                }
            ]
        }
    ]
}

Request - MedDRA requests, including external suggestions - one request with two suggestions, the other none

curl --location --request GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/coder/codingrequests?study_name=ABCP-2022-01_DEV1&coding_item_definition_id=V0T000000004001&include_external_suggestions=true
' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}'

Response - MedDRA requests, including external suggestions - one request with two suggestions, the other none


{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 2,
        "total": 2
    },
    "codingrequests": [
        {
            "coding_item_definition_id": "V0R00000003K001",
            "form_coding_status": "active__v",
            "form_type": "ae__v",
            "dictionary_definition": "MedDRA",
            "dictionary_release": "MedDRA_25_1",
            "requests": [
                {
                    "id": "V0T000000027001",
                    "study_country": "United States",
                    "site": "101",
                    "subject": "SCR-0001",
                    "verbatim": "Stroke",
                    "start_date": "",
                    "stop_date": "",
                    "eventgroup_name": "egMain",
                    "eventgroup_sequence": 1,
                    "event_name": "evMIN",
                    "event_sequence": 1,
                    "form_name": "AE",
                    "form_sequence": 1,
                    "itemgroup_name": "igAE",
                    "itemgroup_sequence": 1,
                    "item_name": "AETERM",
                    "coding_status": "autocoded__v",
                    "last_coded_date": "2023-04-24T18:40:48Z",
                    "last_modified_date": "2023-04-24T18:40:48Z",
                    "created_date": "2023-04-24T18:40:46Z",
                    "created_by": "System",
                    "other_properties": {},
                    "seriousness": "",
                    "severity": "",
                    "soc_code": "10029205",
                    "soc": "Nervous system disorders",
                    "hlgt_code": "10007963",
                    "hlgt": "Central nervous system vascular disorders",
                    "hlt_code": "10007948",
                    "hlt": "Central nervous system haemorrhages and cerebrovascular accidents",
                    "pt_code": "10008190",
                    "pt": "Cerebrovascular accident",
                    "llt_code": "10042244",
                    "llt": "Stroke",
                    "primary_path": "Y",
                    "external_suggestions": [
                        {
                            "external_definition_name": "my_medcdr_company",
                            "external_id": "123456-ABC",
                            "relevance_score": 5,
                            "external_version": "APR-2023v1.1",
                            "soc_code": "10029205",
                            "soc": "Nervous system disorders",
                            "hlgt_code": "10019231",
                            "hlgt": "Headaches",
                            "hlt_code": "10027603",
                            "hlt": "Migraine headaches",
                            "pt_code": "10027599",
                            "pt": "Migraine",
                            "llt_code": "10027599",
                            "llt": "Migraine",
                            "primary_path": "Y"
                        },
                        {
                            "external_definition_name": "my_medcdr_company",
                            "external_id": "123457-ABC",
                            "relevance_score": 10,
                            "external_version": "APR-2023v1.1",
                            "soc_code": "10029205",
                            "soc": "Nervous system disorders",
                            "hlgt_code": "10007963",
                            "hlgt": "Central nervous system vascular disorders",
                            "hlt_code": "10007948",
                            "hlt": "Central nervous system haemorrhages and cerebrovascular accidents",
                            "pt_code": "10008190",
                            "pt": "Cerebrovascular accident",
                            "llt_code": "10042244",
                            "llt": "Stroke",
                            "primary_path": "Y"
                        }
                    ]
                },
                {
                    "id": "V0T000000027002",
                    "study_country": "United States",
                    "site": "101",
                    "subject": "SCR-0001",
                    "verbatim": "Stroke",
                    "start_date": "",
                    "stop_date": "",
                    "eventgroup_name": "egMain",
                    "eventgroup_sequence": 1,
                    "event_name": "evMIN",
                    "event_sequence": 1,
                    "form_name": "AE",
                    "form_sequence": 3,
                    "itemgroup_name": "igAE",
                    "itemgroup_sequence": 1,
                    "item_name": "AETERM",
                    "coding_status": "open__v",
                    "last_coded_date": null,
                    "last_modified_date": "2023-04-24T18:40:48Z",
                    "created_date": "2023-04-24T18:40:46Z",
                    "created_by": "System",
                    "other_properties": {},
                    "seriousness": "",
                    "severity": "",
                    "soc_code": "",
                    "soc": "",
                    "hlgt_code": "",
                    "hlgt": "",
                    "hlt_code": "",
                    "hlt": "",
                    "pt_code": "",
                    "pt": "",
                    "llt_code": "",
                    "llt": "",
                    "primary_path": "",
                    "external_suggestions": []
                }
            ]
        }
    ]
}

Request - MedDRA requests, including external suggestions, but only those lacking suggestions

curl --location --request GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/coder/codingrequests?study_name=ABCP-2022-01_DEV1&coding_item_definition_id=V0T000000004001&include_external_suggestions=true&has_external_suggestions=false
' \
-H 'Accept: application/json' \
-H 'Content-Type: application/json' \
-H 'Authorization: {SESSION_ID}'

Response - MedDRA requests, including external suggestions, but only those lacking suggestions


{
    "responseStatus": "SUCCESS",
    "responseDetails": {
        "limit": 1000,
        "offset": 0,
        "size": 1,
        "total": 1
    },
    "codingrequests": [
        {
            "coding_item_definition_id": "V0R00000003K001",
            "form_coding_status": "active__v",
            "form_type": "ae__v",
            "dictionary_definition": "MedDRA",
            "dictionary_release": "MedDRA_25_1",
            "requests": [
                {
                    "id": "V0T000000027002",
                    "study_country": "United States",
                    "site": "101",
                    "subject": "SCR-0001",
                    "verbatim": "Stroke",
                    "start_date": "",
                    "stop_date": "",
                    "eventgroup_name": "egMain",
                    "eventgroup_sequence": 1,
                    "event_name": "evMIN",
                    "event_sequence": 1,
                    "form_name": "AE",
                    "form_sequence": 3,
                    "itemgroup_name": "igAE",
                    "itemgroup_sequence": 1,
                    "item_name": "AETERM",
                    "coding_status": "open__v",
                    "last_coded_date": null,
                    "last_modified_date": "2023-04-24T18:40:48Z",
                    "created_date": "2023-04-24T18:40:46Z",
                    "created_by": "System",
                    "other_properties": {},
                    "seriousness": "",
                    "severity": "",
                    "soc_code": "",
                    "soc": "",
                    "hlgt_code": "",
                    "hlgt": "",
                    "hlt_code": "",
                    "hlt": "",
                    "pt_code": "",
                    "pt": "",
                    "llt_code": "",
                    "llt": "",
                    "primary_path": "",
                    "external_suggestions": []
                }
            ]
        }
    ]
}

Notes

Endpoint

GET /api/{version}/app/cdm/coder/codingrequests

Required Permissions

The following permissions are required to use the Retrieve Coding Requests API:

The CDMS API Read Write and CDMS API Read Only roles grant these permissions.

Headers

Name Description
Accept application/json (default)
Content-Type application/json

Query String Parameters

Name Description
study_name Name of the Study
study Alternatively, indicate the label of the Study. Only one or the other is supplied, not both.
coding_item_definition_id Specific medical coding definition of requests to return. The value is part of the Study design, and can be found using Retrieve Coding Definitions, specifically the coding_item_definition_id in that response.
study_country Optional Name of the Study Country to filter the return on.
site Optional Name of the Site to filter to. One must include the study_country when including.
subject Optional Name (ID/number) to filter to. One must include site when including.
last_modified_date Optional Retrieve only requests modified after this datetime. Use the format "yyyy-MM-ddTHH:mm:ssZ".
coding_status Optional Retrieve only those requests of certain status (or statuses, if multiple, use comma separated value). Valid status values are - open__v, autocoded__v, uncoded__v, noncurrent__v, coded__v, rejected__v, pending_approval__v, not_to_be_coded__v, better_code_found__v, or updated__v.
include_external_suggestions Optional Boolean value, whether or not to include any external suggestions to the requests. Default when omitted is false. Also note that the Study must also be configured with an external suggestion definition to return this information in the response.
has_external_suggestions Optional Boolean value, when included, will filter the return to just those requests with external suggestions (true) in place, or not (false). When omitted, there is no filter one way or the other.
last_coded_date Optional Retrieve only requests that are coded, and were coded after this datetime. Use the format "yyyy-MM-ddTHH:mm:ssZ".

This API supports pagination. By default, the page limit is set to 1000 records. The pagination parameters are:

Name Description
limit The size of the result set on the page (as a positive integer). If omitted, the default is 1000.
offset The starting record number for the result set (as a positive integer or zero). If omitted, the default is 0.

For example, if the limit is set to 100, and there are 150 possible records, an offset of 0 returns records 0 through 99 (zero based). Then, offset of 100 would return records 100 through 149. More information on pagination is in the section Pagination

Response Details

On SUCCESS, Vault returns a list of Medical Coding Requests (as JSON array entries) with the following information:

Array Name Description
codingrequests coding_item_definition_id Vault internal ID for the Study definition of the coding Item. (pre v22.3, this was coding_item_definition, now renamed to be in line with the Retrieve Coding Definitions API
codingrequests form_coding_status The status of the Study definition of the coding at the Form (of the Item being coded). Formerly named form_status (pre v22.3), but clarified in name for which status regarding the definition. If the coding of the Study is not fully setup, a return here of needs_dictionary__v is likely.
codingrequests form_type The coding definition type of Form, e.g. 'AE'. This is the picklist name (e.g. ae__v, cm__v, other__v)
codingrequests dictionary_definition The type of coding at that location, e.g. WHODrug B3, WHODrug C3, or MedDRA
codingrequests/requests id The Vault internal ID of the Medical Coding Request. Use this value when opening a Query on the coding request (Open Coding Queries)
codingrequests/requests study_country Name of the Study Country for the site of the Subject
codingrequests/requests site Name of the Site for the Subject (NOTE: Study Country to also be returned in a future release. Name here refers to the Name field in Vault. It is alphanumeric and may consist of numbers, letters, or both.
codingrequests/requests subject Name (ID/number) of the Subject
codingrequests/requests verbatim The current value in the Item being coded, e.g. Severe Headache
codingrequests/requests start_date The value in the field mapped to start date (on the Form of the Item being coded)
codingrequests/requests end_date The value in the field mapped to end date (on the Form of the Item being coded)
codingrequests/requests eventgroup_name Study design name for Event Group
codingrequests/requests event_sequence The sequence of the Event Group
codingrequests/requests event_name Study design name for the Event (pre v22.3, this was the label and event, changed for consistency with other endpoints)
codingrequests/requests event_sequence Currently, always a 1. If the Event within a repeating Event Group the sequence increments at the evengroup_sequence level.
codingrequests/requests form_name Study design name for the Form (pre v22.3, this was the label and form, changed for consistency with other endpoints)
codingrequests/requests form_sequence The specific Form sequence
codingrequests/requests itemgroup_name Study design name for Item Group (pre v22.3, this was the label and item_group, changed for consistency with other endpoints)
codingrequests/requests itemgroup_sequence The specific Item Group sequence (pre v22.3, item_group_sequence, changed for consistency with other endpoints)
codingrequests/requests item_name Study design name for the Item (pre v22.3, this was the label and item, changed for consistency with other endpoints)
codingrequests/requests coding_status The current status of the coding request, e.g. open__v, coded__v, etc. (pre v22.3, this was the label, changed for consistency with other endpoints)
codingrequests/requests last_coded_by_third_party The datetime that the request last had coding assigned / selected / auto coded by an external system from CDMS (UTC). Omitted when not set - a future release of CDMS will support 3rd party coding.
codingrequests/requests last_coded_date The datetime that the request last had coding assigned / selected / auto coded (UTC)
codingrequests/requests assigned_to_third_party If coding from another system involved, who in that other system the request is assigned. Omitted when not set - a future release of CDMS will support 3rd party coding.
codingrequests/requests last_modified_date The datetime that the request was last modified in any way (UTC)
codingrequests/requests created_date The datetime that the request was first created (UTC)
codingrequests/requests created_by Name (First Last) of the User who created the request
codingrequests/requests other_properties If study design uses, a set of label/value pairs (JSON array entries), i.e., other values on the Form
codingrequests/requests seriousness (MedDRA only) If the study design maps an Item on that same Form for seriousness, the value in that Item
codingrequests/requests severity (MedDRA only) If the study design maps an Item on that same Form for severity, the value in that Item
codingrequests/requests llt_code (MedDRA only) - numeric value of coding assignment at this level
codingrequests/requests llt (MedDRA only) - text value of coding assignment at this level
codingrequests/requests pt_code (MedDRA only)- numeric value of coding assignment at this level
codingrequests/requests pt (MedDRA only)- text value of coding assignment at this level
codingrequests/requests hlt_code (MedDRA only)- numeric value of coding assignment at this level
codingrequests/requests hlt (MedDRA only)- text value of coding assignment at this level
codingrequests/requests hlgt_code (MedDRA only)- numeric value of coding assignment at this level
codingrequests/requests hlgt (MedDRA only)- text value of coding assignment at this level
codingrequests/requests soc_code (MedDRA only)- numeric value of coding assignment at this level
codingrequests/requests soc (MedDRA only)- text value of coding assignment at this level
codingrequests/requests primary_path (MedDRA only) Values of Y or N only. If multiple paths involved for the coding assignment, whether it is the primary path (or not)
codingrequests/requests indication (WHODrug only) If the study design maps an Item on that same Form for indication, the value in that Item
codingrequests/requests route (WHODrug only) If the study design maps an Item on that same Form for route, the value in that Item
codingrequests/requests drug_name (WHODrug only) Property from the coding that is assigned
codingrequests/requests drug_code (WHODrug only) Property from the coding that is assigned
codingrequests/requests preferred_code (WHODrug only) Property from the coding that is assigned
codingrequests/requests preferred_name (WHODrug only) Property from the coding that is assigned
codingrequests/requests atc4_code (WHODrug only) Property from the coding that is assigned
codingrequests/requests atc4 (WHODrug only) Property from the coding that is assigned
codingrequests/requests atc3_code (WHODrug only) Property from the coding that is assigned
codingrequests/requests atc3 (WHODrug only) Property from the coding that is assigned
codingrequests/requests atc2_code (WHODrug only) Property from the coding that is assigned
codingrequests/requests atc2 (WHODrug only) Property from the coding that is assigned
codingrequests/requests atc1_code (WHODrug only) Property from the coding that is assigned
codingrequests/requests atc1 (WHODrug only) Property from the coding that is assigned

Retrieve Coding Queries

Request

curl -L -X GET 'https://my-vault.veevavault.com/api/v24.2/app/cdm/queries?study_name=ABCP-2022-01_DEV1&coding_item_definition=V0R000000006001,V0R000000007001' \
-H 'Authorization: {SESSION_ID}'

Response

{
    "responseStatus": "SUCCESS",
    "responseDetails": {
                         "limit": 1000,
                         "offset": 0,
                         "size": 2,
                         "total": 2
    },
    "queries": [
        {
            "id": "OPW000000000201"
            "query_name": "VV-000002",
            "manual": true,
            "query_status": "closed__v",
            "study_country": "United States",
            "site": "101",
            "subject": "101-001",
            "eventgroup_name": "Common Logs",
            "eventgroup_sequence": 1,
            "event_name": "Common Logs",
            "event_sequence": 1,
            "form_name": "Adverse Event",
            "form_sequence": 1,
            "itemgroup_name": "Adverse Event",
            "itemgroup_sequence": 1,
            "item_name": "AETERM",
            "coding_item_definition": "V0R000000006001",
            "created_date": "2023-09-25T23:33:30Z",
            "created_by": "Warehouse Admin",
            "source_type": "external__v",
            "source_system_name": "ABC Pharma Data Warehouse System",
            "source_user": "Jeff Williams",
            "source_id": "12345-ABC-00023443",
            "messages": [
                {
                    "id": "OPY000000000301",
                    "activity": "open__v",
                    "message": "Can you relook at this verbatim for appropriate coding?",
                    "message_date": "2023-09-25T23:33:30Z",
                    "message_by": "Warehouse Admin",
                    "message_source_type": "external__v",
                    "message_source_system_name": "ABC Pharma Data Warehouse System",
                    "message_source_user"
